11826 Series

Catalog

LYNX, 5MM, 4X10 PLUG

Part	Height Above Board [z]	Height Above Board [z]	Number of Positions	Contact Finish	Connector Type	Features	Mounting Type	Mated Stacking Heights	Pitch	Pitch	Number of Positions [custom]

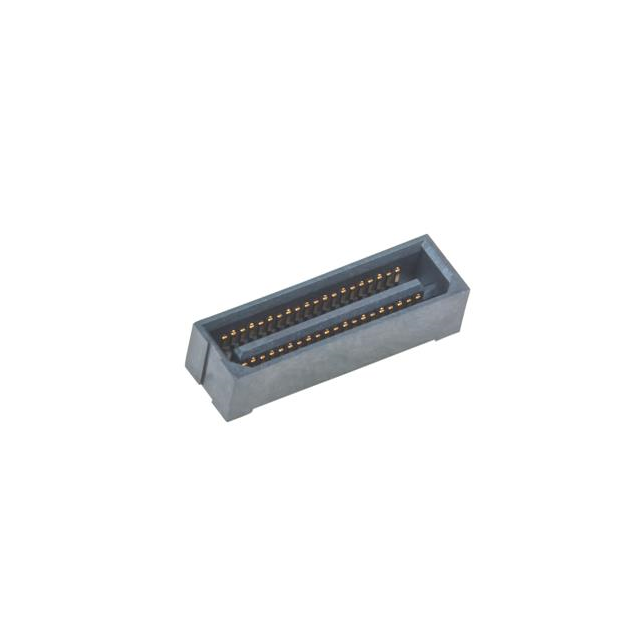

Amphenol ICC 11826-BAA	4.7 mm	0.185 in	40	Gold	Plug Outer Shroud Contacts	Board Guide	Surface Mount	5 mm	0.6 mm	0.024 "
Amphenol ICC 11826-BBA	4.7 mm	0.185 in	80	Gold	Plug Outer Shroud Contacts	Board Guide	Surface Mount	5 mm	0.6 mm	0.024 "

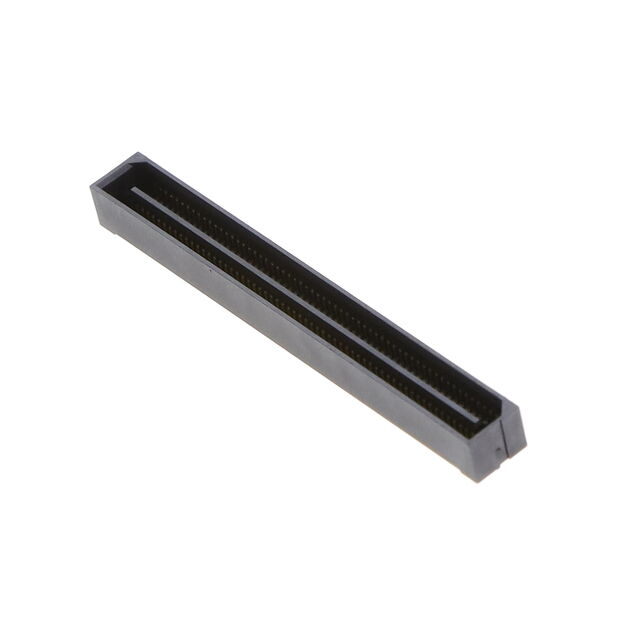

Amphenol ICC 11826-AFA	3.7 mm	0.146 in		Gold	Plug Outer Shroud Contacts	Board Guide Pick and Place	Surface Mount	4 mm	0.6 mm	0.024 "	240

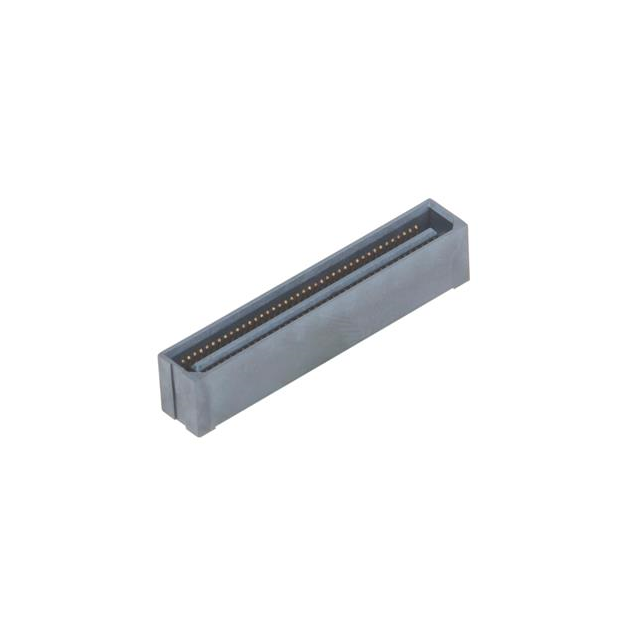

Amphenol ICC 11826-CCA	5.7 mm	0.224 in	120	Gold	Plug Outer Shroud Contacts	Board Guide	Surface Mount	6 mm	0.6 mm	0.024 "
Amphenol ICC 11826-DAA	6.7 mm	0.264 in	40	Gold	Plug Outer Shroud Contacts	Board Guide	Surface Mount	7 mm	0.6 mm	0.024 "
Amphenol ICC 11826-CDA	5.7 mm	0.224 in	160	Gold	Plug Outer Shroud Contacts	Board Guide	Surface Mount	6 mm	0.6 mm	0.024 "
Amphenol ICC 11826-ABA	3.7 mm	0.146 in	80	Gold	Plug Outer Shroud Contacts	Board Guide	Surface Mount	4 mm	0.6 mm	0.024 "

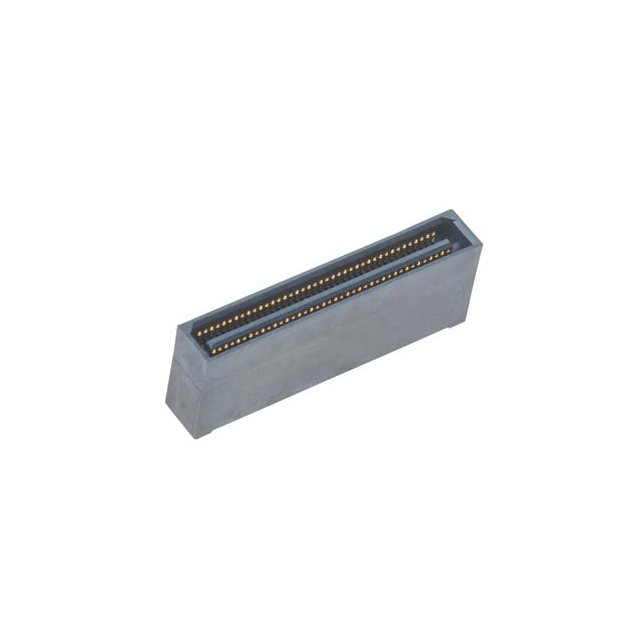

Amphenol ICC 11826-GDA	9.7 mm	0.382 in	160	Gold	Plug Outer Shroud Contacts	Board Guide	Surface Mount	10 mm	0.6 mm	0.024 "

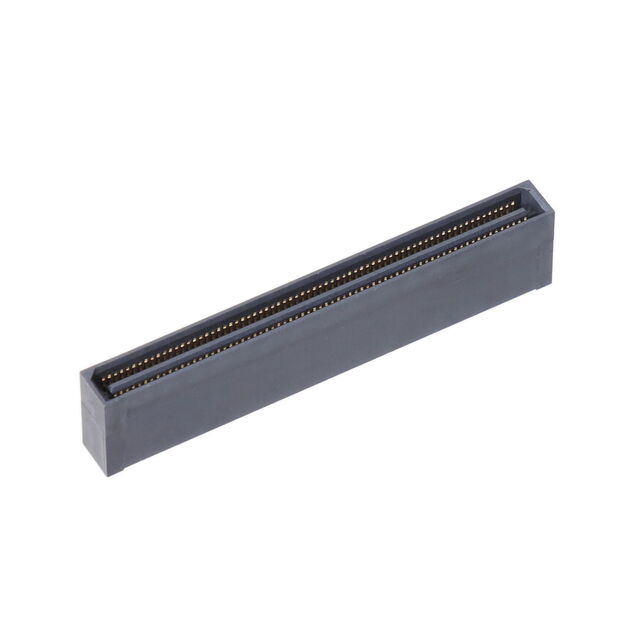

Amphenol ICC 11826-GGA	9.7 mm	0.382 in	280	Gold	Plug Outer Shroud Contacts	Board Guide Pick and Place	Surface Mount	10 mm	0.6 mm	0.024 "
