XHP50A Series

Catalog

LED MOD XHP50 SQUARE

Part	Lens Type	Type	Temperature - Test	CRI (Color Rendering Index)	Configuration	CCT (K)	Color	Luminous Flux @ Current/Temperature	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Size / Dimension [x]	Size / Dimension [y]	Current - Test	Viewing Angle	CCT (K)	Size / Dimension [diameter]

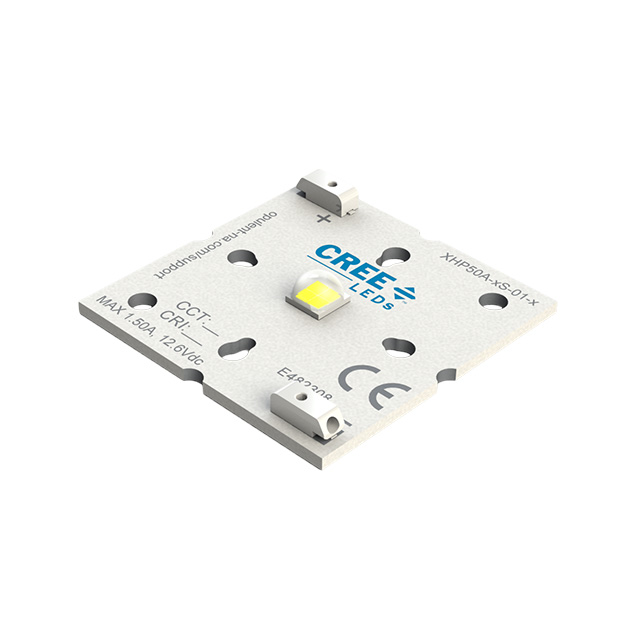

New Energy XHP50A-0S-01-0D0HJ250G	Domed	LED Module	85 °C	80	Square

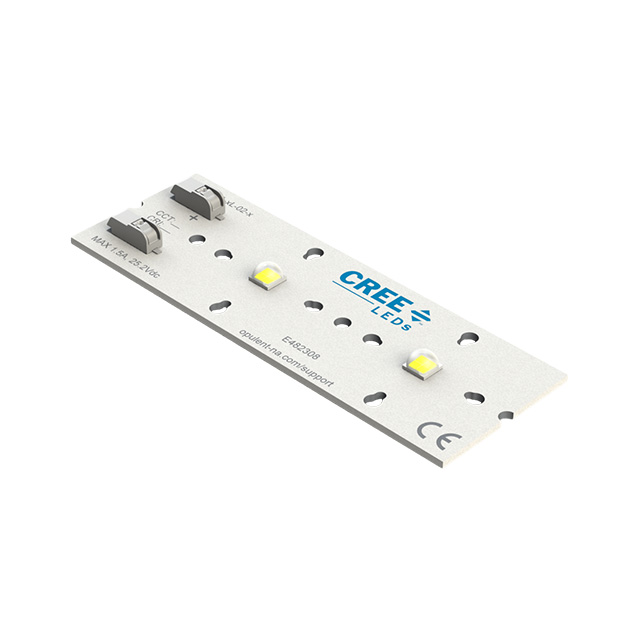

New Energy XHP50A-0L-02-0D0HJ20E2	Domed	LED Module	85 °C	80	Linear Light Strip

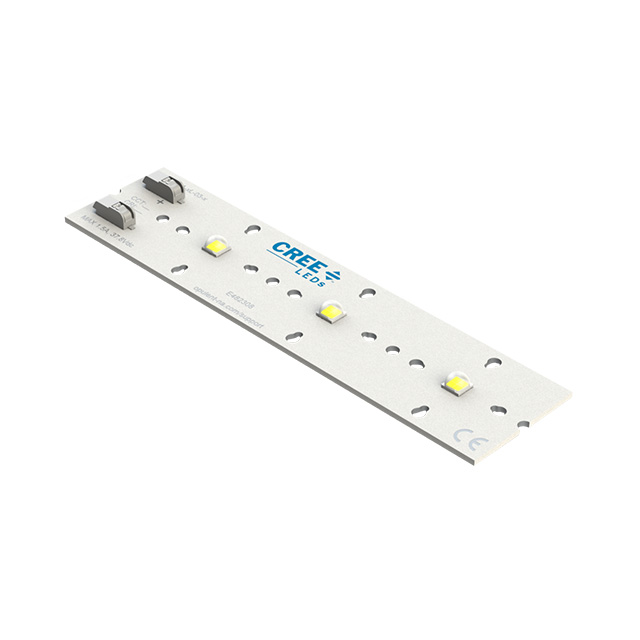

New Energy XHP50A-0L-03-0D0HH430G	Domed	LED Module	85 °C	80	Linear Light Strip
New Energy XHP50A-0S-01-0D0BJ440E	Domed	LED Module	85 °C	70	Square	4000 K	Neutral White	1120 lm	1.5 A	11.5 V	139 lm/W	36.83 mm	36.83 mm

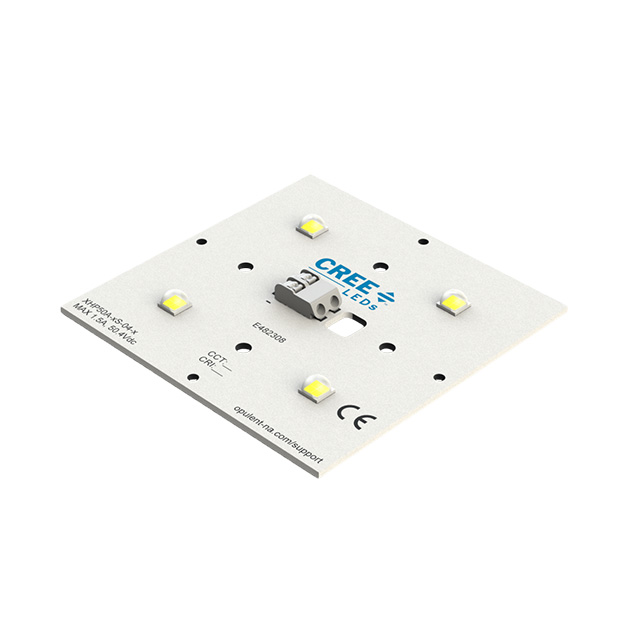

New Energy XHP50A-0S-04-0D0HJ20E2	Domed	LED Module	85 °C	80	Square

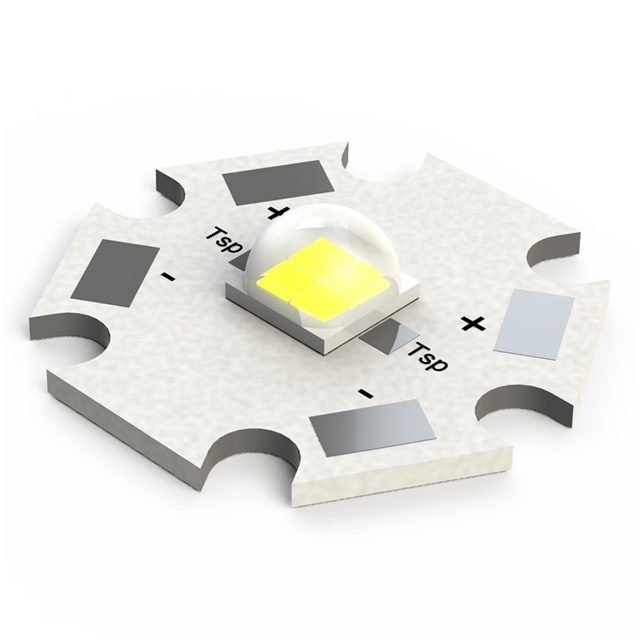

New Energy XHP50A-00-0000-0D0BJ450E-SB01	Domed	LED Module	85 °C	70	Starboard	5000 K	Cool White	1160 lm	1.5 A 3 A	6 V 12 V 12 V	72 lm/W			1.4 A 700 mA	120 °	5-Step MacAdam Ellipse	19.89 mm
New Energy XHP50A-0S-04-0D0HH227G	Domed	LED Module	85 °C	80	Square	2700 K	Warm White	3600 lm	1.5 A	46 V	112 lm/W	73.15 mm	73.15 mm			3-Step MacAdam Ellipse
New Energy XHP50A-0L-04-0D0HH227G	Domed	LED Module	85 °C	80	Linear Light Strip	2700 K	Warm White	3600 lm	1.5 A	46 V	112 lm/W	6.7 "	1.3 in			3-Step MacAdam Ellipse
New Energy XHP50A-0L-02-0D0BH430E	Domed	LED Module	85 °C	70	Linear Light Strip	3000 K	Warm White	1940 lm	1.5 A	23 V	121 lm/W	93.98 mm	1.3 in			5-Step MacAdam Ellipse
New Energy XHP50A-0S-01-0D0BJ40E2	Domed	LED Module	85 °C	70	Square	5700 K	Cool White	1120 lm	1.5 A	11.5 V	139 lm/W	36.83 mm	36.83 mm
