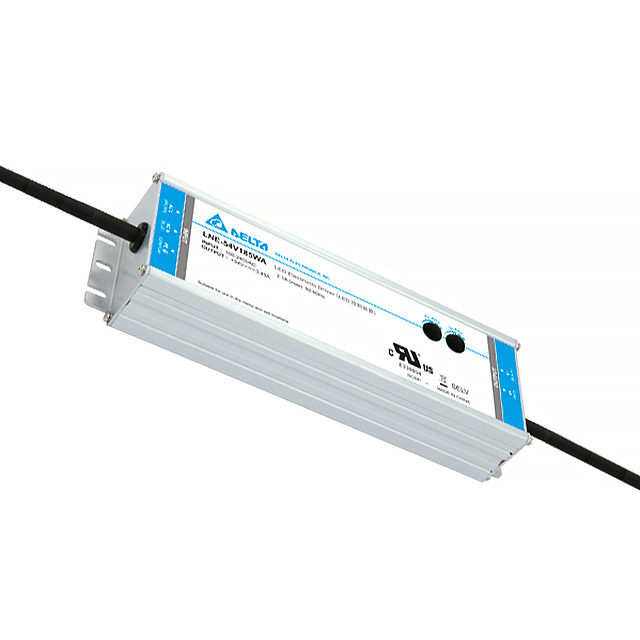

LNE-54 Series
Manufacturer: Delta Electronics
Beta
⌘K
LED DRIVER CC/CV AC/DC 54V 3.45A
| Part | Mounting Type | Weight | Weight | Features | Voltage - Input (Max) [Max] | Ratings | Approval Agency | Power (Watts) | Current - Output (Max) [Max] | Termination Style | Type | Standard Number | Topology | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Isolation | Voltage - Input (Min) [Min] | Voltage - Output [Max] | Voltage - Output [Min] | Efficiency | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Chassis Mount | 1.1 kg | 2.4 lbs | OCP OTP OVP SCP | 305 VAC | IP65 | UL | 185 W | 3.45 A | Wire Leads | Constant Current Voltage | 50581 55011 55032 60601-1 60950-1 62368-1 | AC DC Converter | 70 °C | -40 C | 204 mm | 1.53 in | 68 mm | 2.68 in | 38.8 mm | 8.03 in | 3.85 kV | 90 VAC | 54 V | 27 V | 94 % | 1 |
