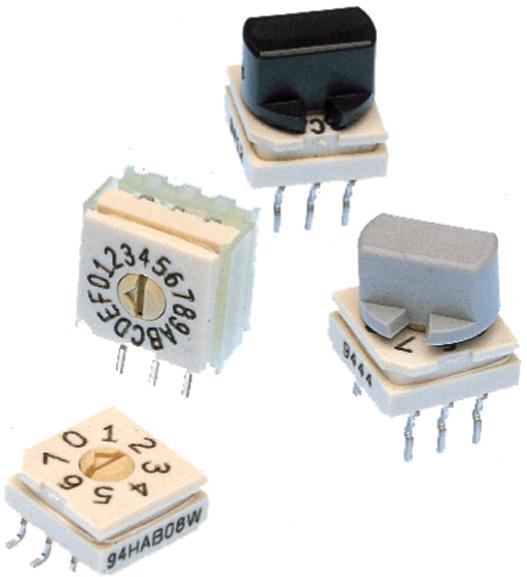

94HFC16 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SW ROTARY DIP HEX COMP 0.1A 50V
| Part | Mechanical Life | Body Material | Length | Length | Actuator Level | Mounting Type | Circuit | Contact Material | Features | Contact Finish | Actuator Type | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Height Above Board [z] | Height Above Board [z] | Pitch | Pitch | Washable | Number of Positions | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 10000 Steps | Plastic | 10.92 mm | 0.43 in | Flush Recessed | Right Angle Through Hole | Hexadecimal Complement | Copper Alloy | Sealed | Gold | Rotary for Tool | 100 mA | 85 °C | -40 C | 50 V | 10.16 mm | 0.4 in | 2.54 mm | 0.1 " | 16 | PC Pin | |
 Grayhill Inc. | 10000 Steps | Plastic | 9.91 mm | 0.39 " | Flush Recessed | Surface Mount | Hexadecimal Complement | Copper Alloy | Sealed | Gold | Rotary for Tool | 100 mA | 85 °C | -40 C | 50 V | 6.35 mm | 0.25 in | 2.54 mm | 0.1 " | 16 | J Lead |
