LM3370 Series

Catalog

DUAL SYNCHRONOUS STEP-DOWN DC-DC CONVERTER WITH DYNAMIC VOLTAGE SCALING FUNCTION

Part	Supplier Device Package	Package / Case	Function	Voltage - Output (Min/Fixed)	Current - Output	Frequency - Switching	Output Type	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Topology	Mounting Type	Output Configuration	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Output (Min/Fixed)	Main Purpose	Board Type	Supplied Contents	Utilized IC / Part	Regulator Topology	Voltage - Output	Outputs and Type	Outputs and Type	Voltage - Input [Min]	Voltage - Input [Max]
Texas Instruments LM3370SDX-4221/NOPB	16-WSON (5x4)	16-WFDFN Exposed Pad	Step-Down	1.8 V 3.3 V	600 mA	2 MHz	1.81 mOhm	2	-30 °C	85 °C	Buck	Surface Mount	Positive	5.5 V	2.7 V

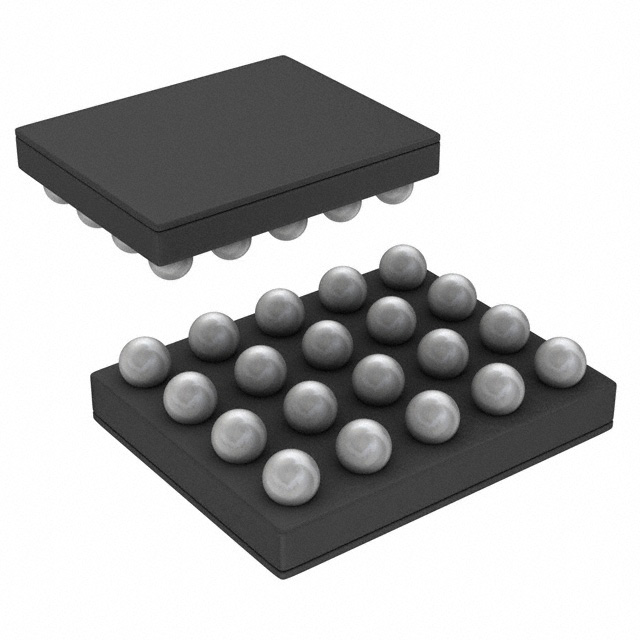

Texas Instruments LM3370TLX-3607/NOPB	20-DSBGA	20-WFBGA	Step-Down	1.5 V 1.9 V	600 mA	2 MHz	1.81 mOhm	2	-30 °C	85 °C	Buck	Surface Mount	Positive	5.5 V	2.7 V
Texas Instruments LM3370SD-3013/NOPB	16-WSON (5x4)	16-WFDFN Exposed Pad	Step-Down	1.2 V 2.5 V	600 mA	2 MHz	1.81 mOhm	2	-30 °C	85 °C	Buck	Surface Mount	Positive	5.5 V	2.7 V
Texas Instruments LM3370SDX-3013/NOPB	16-WSON (5x4)	16-WFDFN Exposed Pad	Step-Down	1.2 V 2.5 V	600 mA	2 MHz	1.81 mOhm	2	-30 °C	85 °C	Buck	Surface Mount	Positive	5.5 V	2.7 V
Texas Instruments LM3370SD-3806/NOPB	16-WSON (5x4)	16-WFDFN Exposed Pad	Step-Down	1.6 V 1.8 V	600 mA	2 MHz	1.81 mOhm	2	-30 °C	85 °C	Buck	Surface Mount	Positive	5.5 V	2.7 V
Texas Instruments LM3370SDX-3416/NOPB	16-WSON (5x4)	16-WFDFN Exposed Pad	Step-Down	1.4 V	600 mA	2 MHz	1.81 mOhm	2	-30 °C	85 °C	Buck	Surface Mount	Positive	5.5 V	2.7 V	2.8 V
Texas Instruments LM3370SD-3021EV					600 mA	2 MHz											DC/DC Step Down	Fully Populated	Board(s)	LM3370	Buck	1.2 V 3.3 V	2	Non-Isolated	2.7 V	5.5 V
Texas Instruments LM3370TLX-3006/NOPB	20-DSBGA	20-WFBGA	Step-Down	1.2 V 1.8 V	600 mA	2 MHz	1.81 mOhm	2	-30 °C	85 °C	Buck	Surface Mount	Positive	5.5 V	2.7 V
Texas Instruments LM3370SDX-3021/NOPB	16-WSON (5x4)	16-WFDFN Exposed Pad	Step-Down	1.2 V 3.3 V	600 mA	2 MHz	1.81 mOhm	2	-30 °C	85 °C	Buck	Surface Mount	Positive	5.5 V	2.7 V
Texas Instruments LM3370TLX-3022/NOPB	20-DSBGA	20-WFBGA	Step-Down	1.2 V 1.85 V	600 mA	2 MHz	1.81 mOhm	2	-30 °C	85 °C	Buck	Surface Mount	Positive	5.5 V	2.7 V
