845-031 Series
Manufacturer: EDAC Inc.
Beta
⌘K

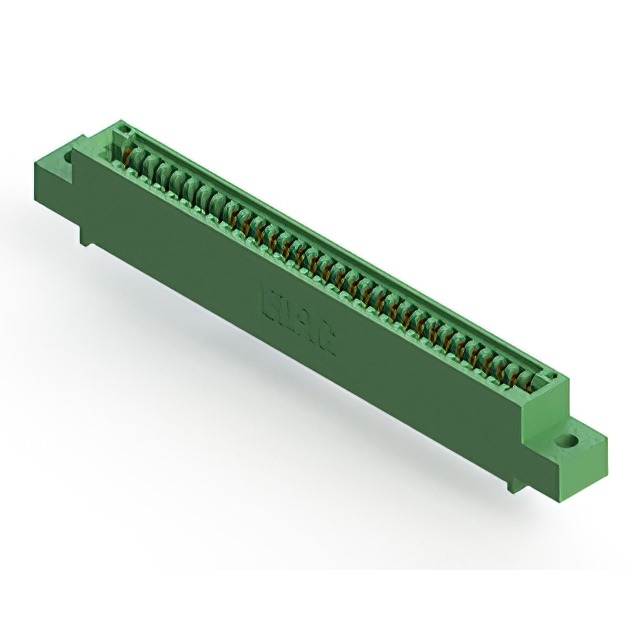

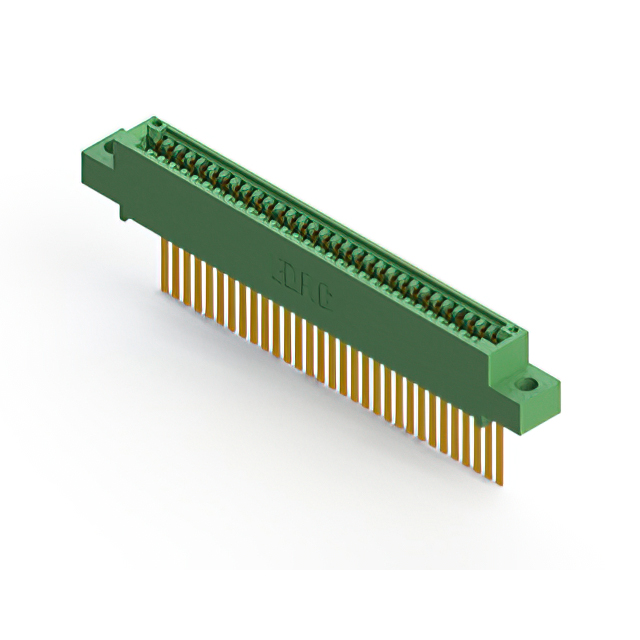

CONN EDGE SINGLE FML 31POS 0.100
| Part | Termination Rows | Material - Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Number of Positions/Bay/Row [custom] | Termination | Mounting Type | Card Thickness [Max] | Card Thickness [Min] | Contact Finish | Gender | Number of Rows | Card Type | Contact Material | Color | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions [custom] | Read Out | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Cantilever | 31 | Wire Wrap | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Female | 1 | Non Specified - Single Edge | Copper Alloy | Green | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | 31 | Single | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Cantilever | 31 | Solder | Right Angle Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Female | 1 | Non Specified - Single Edge | Copper Alloy | Green | 0.128 " | 3.25 mm | 31 | Single | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Cantilever | 31 | Solder | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Female | 1 | Non Specified - Single Edge | Copper Alloy | Green | 0.128 " | 3.25 mm | 31 | Single | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Cantilever | 31 | Solder | Right Angle Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Female | 1 | Non Specified - Single Edge | Copper Alloy | Green | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | 31 | Single | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Cantilever | 31 | Wire Wrap | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Female | 1 | Non Specified - Single Edge | Copper Alloy | Green | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | 31 | Single | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Cantilever | 31 | Solder | Right Angle Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Female | 1 | Non Specified - Single Edge | Copper Alloy | Green | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 31 | Single | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Cantilever | 31 | Wire Wrap | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Female | 1 | Non Specified - Single Edge | Copper Alloy | Green | 0.128 " | 3.25 mm | 31 | Single | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Cantilever | 31 | Wire Wrap | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Female | 1 | Non Specified - Single Edge | Copper Alloy | Green | 4-40 Flush Mount Threaded Insert Top Opening | 31 | Single | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Cantilever | 31 | Wire Wrap | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Female | 1 | Non Specified - Single Edge | Copper Alloy | Green | 0.156 " | 3.96 mm | 31 | Single | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Cantilever | 31 | Solder Eyelet(s) | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Female | 1 | Non Specified - Single Edge | Copper Alloy | Green | Flush Mount M3 Threaded Insert Top Opening | 31 | Single | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm |
