IPB240 Series

Manufacturer: INFINEON

Catalog

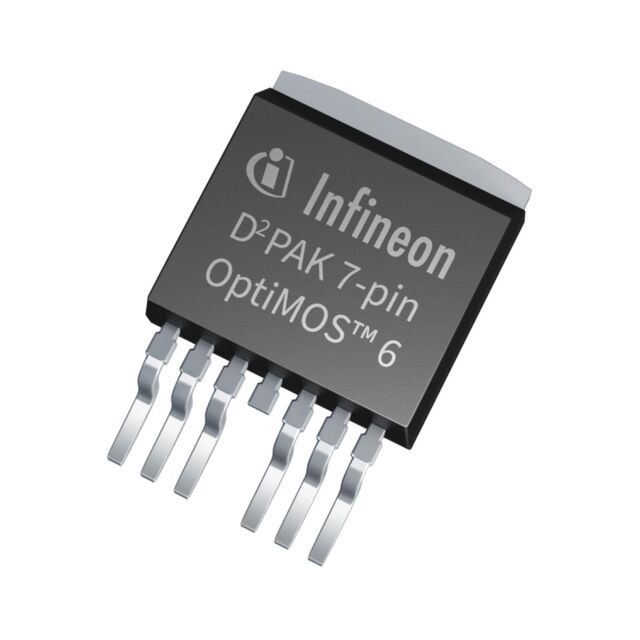

MOSFET N-CH 30V 240A TO263-7

Part	Rds On (Max) @ Id, Vgs	Supplier Device Package	Qualification	Grade	Current - Continuous Drain (Id) @ 25°C	Vgs(th) (Max) @ Id	Package / Case	Mounting Type	Vgs (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds [Max]	Gate Charge (Qg) (Max) @ Vgs	Technology	FET Type	Power Dissipation (Max)	Drive Voltage (Max Rds On, Min Rds On)	Gate Charge (Qg) (Max) @ Vgs [Max]
INFINEON IPB240N03S4LR9ATMA1	0.92 mOhm	PG-TO263-7-3	AEC-Q101	Automotive	240 A	2.2 V	D2PAK (6 Leads + Tab) TO-263-7	Surface Mount	16 V	175 °C	-55 °C	30 V	20300 pF	300 nC	MOSFET (Metal Oxide)	N-Channel	231 W	4.5 V 10 V
INFINEON IPB240N04S4R9ATMA1	0.87 mOhm	PG-TO263-7-3	AEC-Q101	Automotive	240 A	4 V	D2PAK (6 Leads + Tab) TO-263-7	Surface Mount	20 V	175 °C	-55 °C	40 V	23000 pF		MOSFET (Metal Oxide)	N-Channel	300 W	10 V	290 nC
