3570-1411 Series
Manufacturer: Comus International
Beta
⌘K

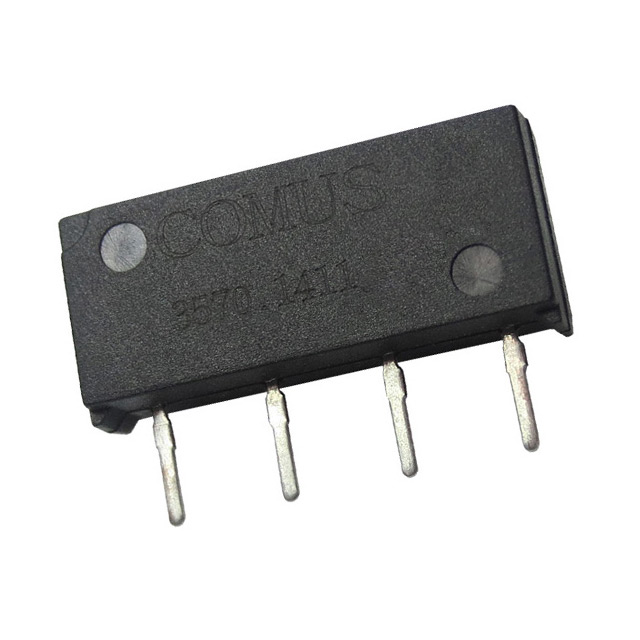

RELAY REED SIP SPST .5A 12V W/EM
| Part | Coil Resistance | Mounting Type | Coil Current | Must Release Voltage | Must Operate Voltage | Features | Form A Count | Contact Form | Contact Rating (Current) | Coil Type | Operate Time | Coil Voltage | Termination Style | Operating Temperature (Min) | Operating Temperature (Max) | Release Time | Switching Voltage DC (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Comus International | 1 kOhms | Through Hole | 12 mA | 1 VDC | 9 VDC | EMI Shielded | 1 | SPST-NO | 500 mA | Non Latching | 0.35 ms | 12 VAC | PC Pin | -40 °C | 85 °C | 0.1 ms | 200 VDC |
