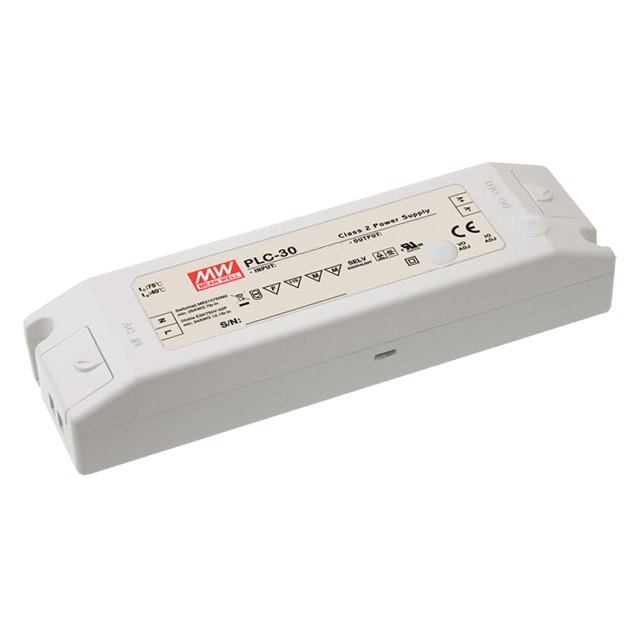

PLC-30 Series

Catalog

LED DRIVER CC AC/DC 6.3-9V 3.3A

Part	Mounting Type	Voltage - Output [Min]	Voltage - Output [Max]	Topology	Voltage - Input (Min) [Min]	Voltage - Isolation	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Number of Outputs	Termination Style	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Features	Voltage - Input (Max) [Max]	Efficiency	Type	Power (Watts)
MEAN WELL USA Inc. PLC-30-9	Chassis Mount	6.3 V	9 V	AC DC Converter	90 VAC	3750 VDC	CB CCC CE cURus ENEC PSE TUV	-30 ░C	50 °C	3.3 A	1	Terminal Block	1.18 in	30 mm	1.81 in	46 mm	6.3 in	160 mm	OCP OTP OVP SCP	264 VAC	80 %	Constant Current	30 Watts
MEAN WELL USA Inc. PLC-30-12	Chassis Mount	8.4 V	12 V	AC DC Converter	90 VAC	3750 VDC	CB CCC CE cURus ENEC PSE TUV	-30 ░C	50 °C	2.5 A	1	Terminal Block	1.18 in	30 mm	1.81 in	46 mm	6.3 in	160 mm	OCP OTP OVP SCP	264 VAC	82.5 %	Constant Current	30 Watts
MEAN WELL USA Inc. PLC-30-15	Chassis Mount	10.5 V	15 V	AC DC Converter	90 VAC	3750 VDC	CB CCC CE cURus ENEC PSE TUV	-30 ░C	50 °C	2 A	1	Terminal Block	1.18 in	30 mm	1.81 in	46 mm	6.3 in	160 mm	OCP OTP OVP SCP	264 VAC	83.5 %	Constant Current	30 Watts
