9943 Series
Manufacturer: Belden Inc.
Beta
⌘K

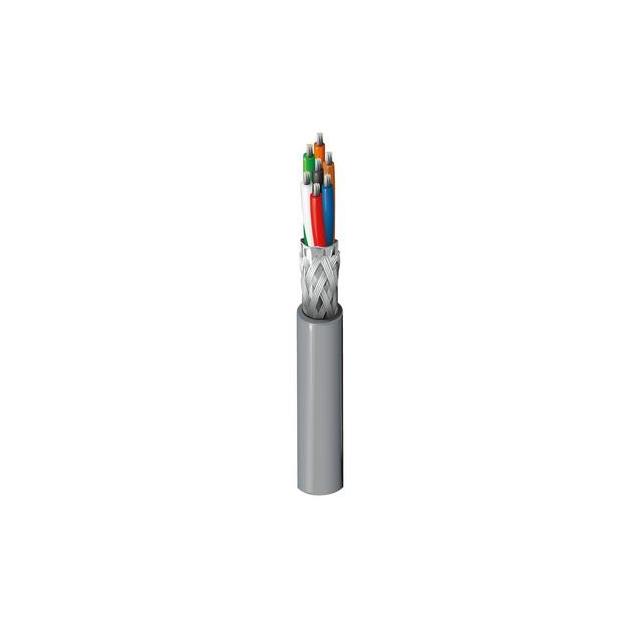

CABLE 7COND 22AWG CHRM SHD
| Part | Shield Material | Shield Coverage | Length | Length | Jacket Color | Ratings | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Conductor Material | Conductor Insulation | Cable Type | Usage | Number of Conductors | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 70 % 100 % | 304.8 m | 1000 ft | Chrome | UL Style 2464 | 80 °C | -30 ░C | 0.035 in | 0.889 mm | 0.245 " | 6.22 mm | Braid Foil | 300 VDC | 30 AWG | 7 | Poly-Vinyl Chloride (PVC) | Copper Tinned | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Computer | 7 | 22 AWG |
Belden Inc. | Aluminum Copper Tinned | 70 % 100 % | Chrome | UL Style 2464 | 80 °C | -30 ░C | 0.035 in | 0.889 mm | 0.245 " | 6.22 mm | Braid Foil | 300 VDC | 30 AWG | 7 | Poly-Vinyl Chloride (PVC) | Copper Tinned | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Computer | 7 | 22 AWG |
