IR22141 Series

Manufacturer: INFINEON

Catalog

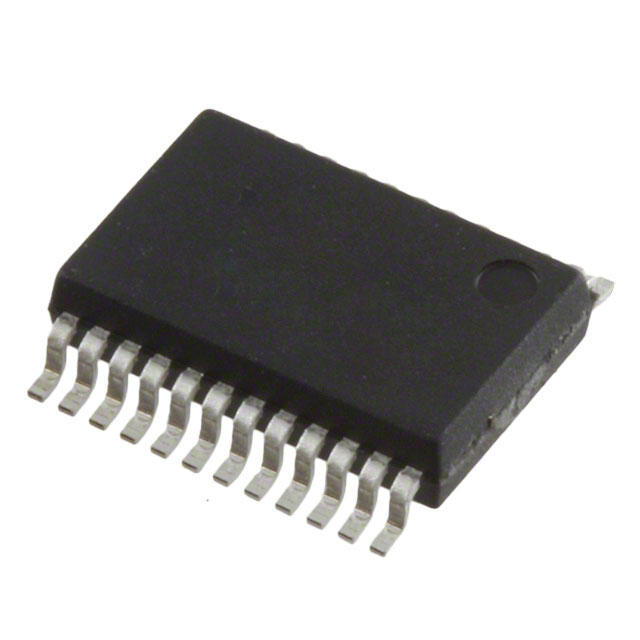

IC GATE DRVR HALF-BRIDGE 24SSOP

Part	High Side Voltage - Max (Bootstrap) [Max]	Rise / Fall Time (Typ)	Driven Configuration	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Input Type	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Mounting Type	Channel Type	Number of Drivers	Gate Type	Logic Voltage - VIL, VIH	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case	Package / Case
INFINEON IR22141SSTRPBF	1.2 kV	7 ns 24 ns	Half-Bridge	20 V	11.5 V	24-SSOP	Non-Inverting	2 A	3 A	Surface Mount	Independent	2	IGBT	0.8 V 2 V	-40 °C	150 °C	24-SSOP	5.3 mm	0.209 in
INFINEON IR22141SS	1.2 kV	7 ns 24 ns	Half-Bridge	20 V	11.5 V	24-SSOP	Non-Inverting	2 A	3 A	Surface Mount	Independent	2	IGBT	0.8 V 2 V	-40 °C	150 °C	24-SSOP	5.3 mm	0.209 in
INFINEON IR22141SSPBF	1.2 kV	7 ns 24 ns	Half-Bridge	20 V	11.5 V	24-SSOP	Non-Inverting	2 A	3 A	Surface Mount	Independent	2	IGBT	0.8 V 2 V	-40 °C	150 °C	24-SSOP	5.3 mm	0.209 in
