BGC11 Series

Catalog

CONN RCPT HSG MALE 8P PNL MT RA

Part	Shell Size - Insert	Shell Finish	Mounting Feature	Features	Operating Temperature (Min)	Operating Temperature (Max)	Includes Total Count	Includes	Material Flammability Rating	Orientation	Insert Material	Note	Fastening Type	Housing Color	Shell Material	Ingress Protection Description	Ingress Protection IP Rating	Shielding	Contact Shape	Number of Positions	Position Types	Connector Type	Type	Mounting Type
TE Intercontec BGC110N00001116000	M23-8	Chromate	Flange	Backshell Rotatable	-20 °C	130 °C	3 pcs	Backshell Connector O-Ring	UL94 V-0	Keyed	Nylon 6/6 PA66 Polyamide	Contacts Not Included	Push-Twist	Silver	Zinc Die Cast	Dust Tight Water Resistant Waterproof	IP66 IP67	Unshielded	Circular	8	PE Power	Receptacle Housing	For Male Pins	Panel Mount Right Angle

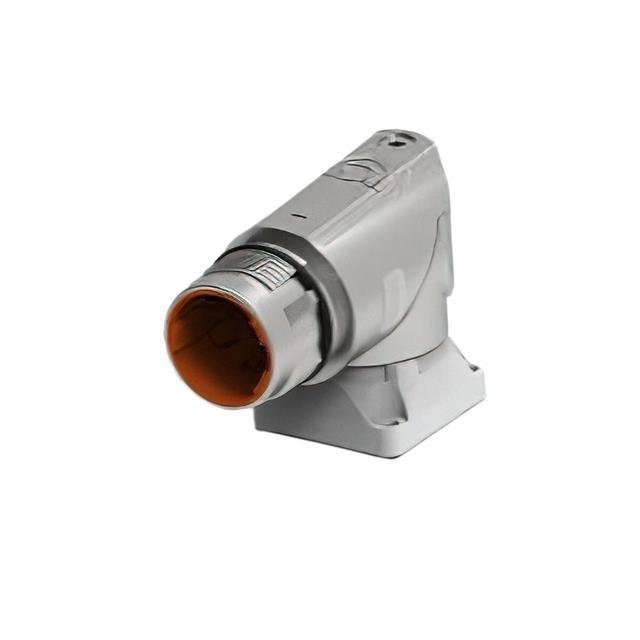

TE Intercontec BGC110N00001200000	M23-8	Chromate	Flange	Backshell Rotatable	-20 °C	130 °C	3 pcs	Backshell Connector O-Ring	UL94 V-0	Keyed	Nylon 6/6 PA66 Polyamide	Contacts Not Included	Push-Twist	Silver	Zinc Die Cast	Dust Tight Water Resistant Waterproof	IP66 IP67	Unshielded	Circular	8	PE Power	Receptacle Housing	For Male Pins	Panel Mount Right Angle
TE Intercontec BGC110N00001216000	M23-8	Chromate	Flange	Backshell Rotatable	-20 °C	130 °C	3 pcs	Backshell Connector O-Ring	UL94 V-0	Keyed	Nylon 6/6 PA66 Polyamide	Contacts Not Included	Push-Twist	Silver	Zinc Die Cast	Dust Tight Water Resistant Waterproof	IP66 IP67	Unshielded	Circular	8	PE Power	Receptacle Housing	For Male Pins	Panel Mount Right Angle
