BM12B-ZP Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

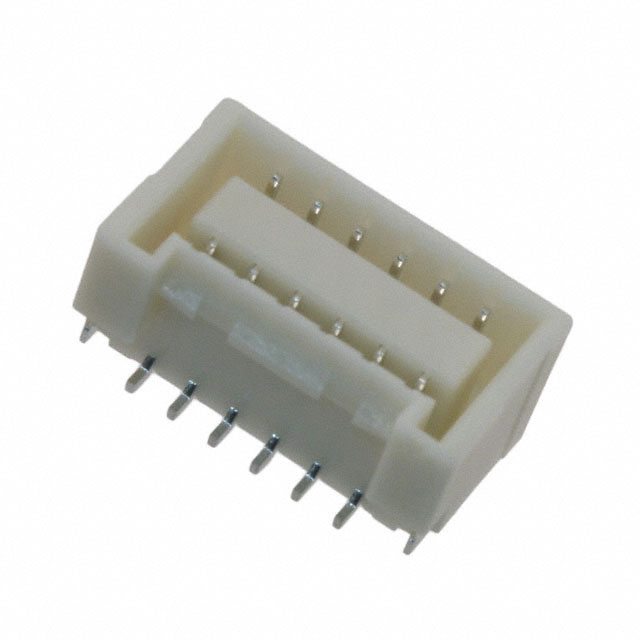

CONN HEADER SMD 12POS 1.5MM
| Part | Mated Stacking Heights | Shrouding | Insulation Material | Style | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Contact Shape | Insulation Height [z] | Insulation Height [z] | Contact Type | Voltage Rating | Connector Type | Number of Positions Loaded | Fastening Type | Material Flammability Rating | Mounting Type | Number of Rows [custom] | Features | Insulation Color | Contact Material | Number of Positions | Termination | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 9.5 mm | Shrouded - 4 Wall | Nylon Polyamide (PA) | Board to Cable/Wire | 85 °C | -25 °C | 2 A | Rectangular | 0.219 in | 5.56 mm | Outer Shroud Contact | 100 V | Header | All | Locking Ramp | UL94 V-0 | Surface Mount | 2 | Solder Retention | Natural | Copper Alloy | 12 | Solder | Tin |
