15BJxxH Series
ESD Suppressors / TVS Diodes AUTO TVS DIODE, 15BJ FAMILY, 26Vdc, Bi-d
Manufacturer: Eaton - Electronics Division
Catalog
ESD Suppressors / TVS Diodes AUTO TVS DIODE, 15BJ FAMILY, 26Vdc, Bi-d
Beta
⌘K
ESD Suppressors / TVS Diodes AUTO TVS DIODE, 15BJ FAMILY, 26Vdc, Bi-d
ESD Suppressors / TVS Diodes AUTO TVS DIODE, 15BJ FAMILY, 26Vdc, Bi-d
ESD Suppressors / TVS Diodes AUTO TVS DIODE, 15BJ FAMILY, 26Vdc, Bi-d
| Part | Power - Peak Pulse | Power - Peak Pulse | Current - Peak Pulse (10/1000µs) | Power Line Protection | Voltage - Reverse Standoff (Typ) | Applications | Grade | Unidirectional Channels [custom] | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Voltage - Clamping (Max) @ Ipp [Max] | Voltage - Breakdown (Min) [Min] | Qualification | Type | Mounting Type | Bidirectional Channels [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

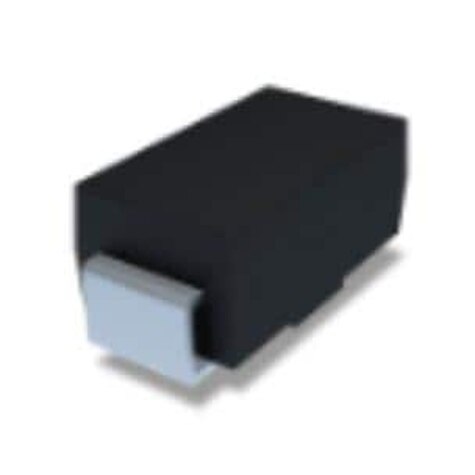

 Eaton - Electronics Division | 1.5 kW | 1500 W | 9.3 A | 100 V | Telecom | Automotive | 1 | SMBF | 150 °C | -55 °C | DO-221AA SMB Flat Leads | 162 V | 111 V | AEC-Q101 | Zener | Surface Mount | ||
Eaton - Electronics Division | 1.5 kW | 1500 W | 35.6 A | 26 V | Telecom | Automotive | SMBF | 150 °C | -55 °C | DO-221AA SMB Flat Leads | 42.1 V | 28.9 V | AEC-Q101 | Zener | Surface Mount | 1 | ||
 Eaton - Electronics Division | 1.5 kW | 1500 W | 69.8 A | 13 V | Telecom | Automotive | SMBF | 150 °C | -55 °C | DO-221AA SMB Flat Leads | 21.5 V | 14.4 V | AEC-Q101 | Zener | Surface Mount | 1 | ||
Eaton - Electronics Division | 1.5 kW | 1500 W | 33.1 A | 28 V | Telecom | Automotive | 1 | SMBF | 150 °C | -55 °C | DO-221AA SMB Flat Leads | 45.4 V | 31.1 V | AEC-Q101 | Zener | Surface Mount |
