TR9CI5000 Series
Manufacturer: GlobTek, Inc.
Beta
⌘K
AC/DC DESKTOP ADAPTER 24V 120W
| Part | Polarization | Operating Temperature [Min] | Operating Temperature [Max] | Output Connector [diameter] | Output Connector | Output Connector [x] | Form | Efficiency | No Load Power Consumption | Power (Watts) | Applications | Voltage - Output | Input Type | Cord Length | Cord Length | Current - Output (Max) | Region Utilized | Voltage - Input [Max] | Voltage - Input [Min] | Input Connector | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Standard Number | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

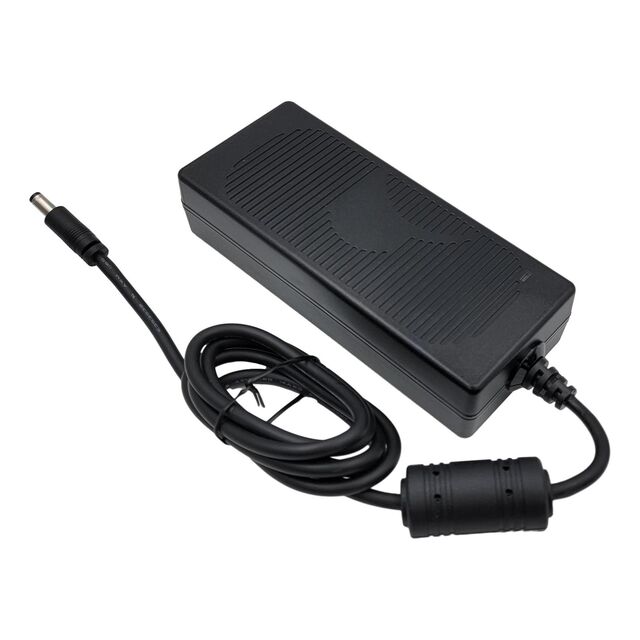

 GlobTek, Inc. | Positive Center | -20 ░C | 40 °C | 2.5 mm 5.5 mm | Barrel Plug | 11 mm | Desktop (Class I) | Level VI | 150 mW | 120 W | Household Appliances ITE (Commercial) Medical | 24 V | Cord (Sold Separately) | 1.2 m | 47.2 in | 5 A | International | 264 VAC | 90 VAC | IEC 320-C14 | 34 mm | 1.34 " | 5.88 " | 149.3 mm | 2.47 " | 62.8 mm | 60335-1 60601-1-11 60601-1-2 60950-1 61347-1 62368-1 | BSMI CB CCC CE cETLus EAC ETL PSE S-Mark UkrSEPRO VCCI |

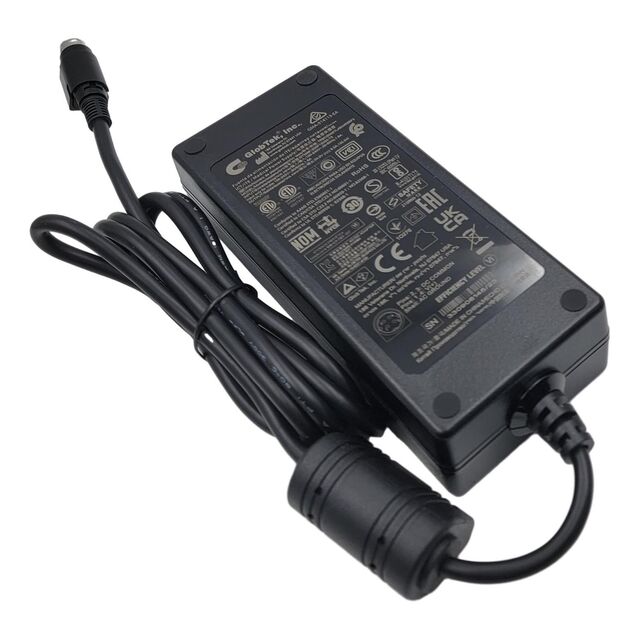

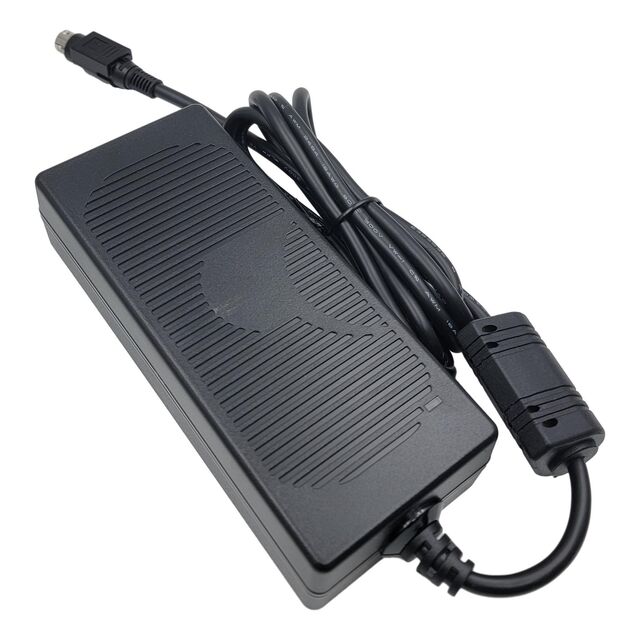

 GlobTek, Inc. | -10 °C | 40 °C | Power DIN 4 Pin | Desktop (Class I) | CoC Tier 2 Level VI | 150 mW | 120 W | Household Appliances ITE (Commercial) Medical | 24 V | Cord (Sold Separately) | 1.5 m | 59 in | 5 A | International | 264 VAC | 90 VAC | IEC 320-C14 | 34 mm | 1.34 " | 5.88 " | 149.3 mm | 2.47 " | 62.8 mm | 60335-1 60601-1-11 60601-1-2 60950-1 61347-1 62368-1 | BSMI CB CCC CE cETLus EAC ETL PSE S-Mark UkrSEPRO VCCI |
