7042-1511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

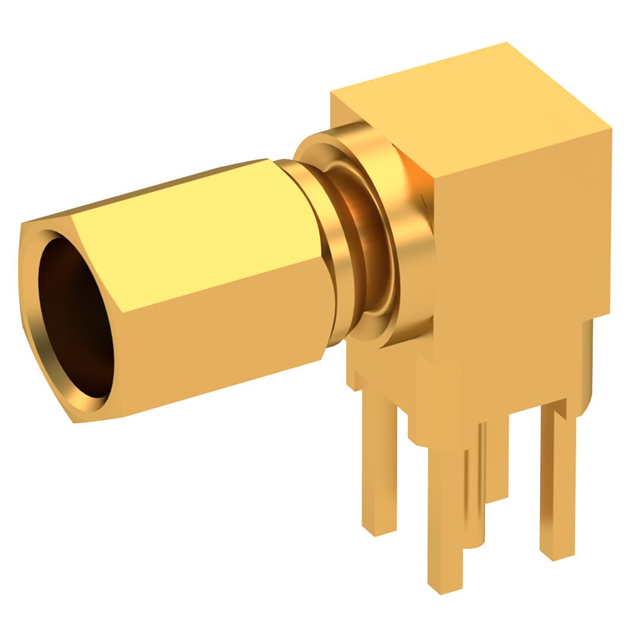

SSMC / RIGHT ANGLE JACK MALE GOL
| Part | Dielectric Material | Body Finish | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Mating Cycles | Voltage Rating | Contact Termination | Frequency - Max [Max] | Center Contact Material | Fastening Type | Housing Color | Mounting Type | Shield Termination | Connector Type | Connector Style | Number of Ports | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | Brass | -65 ░C | 165 °C | Gold | 500 | 250 V | Solder | 12.4 GHz | Beryllium Copper | Threaded | Gold | Right Angle Through Hole | Solder | Jack Male Pin | SSMC | 1 | 50 Ohms |
