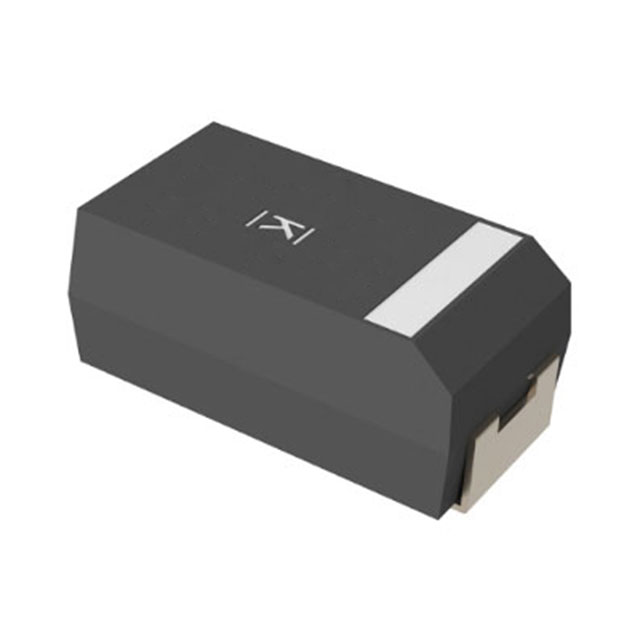

T598 Series

Manufacturer: KEMET

Catalog

TANTALUM POLYMER CAPACITOR, 33 ΜF, ± 20%, 10 V, B, 0.07 OHM, 1411 [3528 METRIC]

Part	Operating Temperature [Min]	Operating Temperature [Max]	Features	Tolerance	ESR (Equivalent Series Resistance)	Voltage - Rated	Ratings	Type	Lifetime @ Temp.	Capacitance	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Manufacturer Size Code	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET T598B336M010ATE070	-55 C	125 °C	Automotive	20 %	70 mOhm	10 V	AEC-Q200	Molded	2000 Hrs	33 ÁF	Surface Mount	3.5 mm	0.11 "	2.8 mm	0.138 in	B	2.1 mm	0.083 in	3528 Metric	1411
KEMET T598D107M016ATE050	-55 C	125 °C	Automotive	20 %	50 mOhm	16 V	AEC-Q200	Molded	2000 Hrs	100 µF	Surface Mount	7.3 mm	0.169 "	4.3 mm	0.287 "	D	3.1 mm	0.122 in		2917 (7343 Metric)
KEMET T598D226M035ATE0657280	-55 C	125 °C	Automotive	20 %	65 mOhm	35 V	AEC-Q200	Molded	2000 Hrs	22 µF	Surface Mount	7.3 mm	0.169 "	4.3 mm	0.287 "	D	3.1 mm	0.122 in		2917 (7343 Metric)
KEMET T598B227M2R5ATE025	-55 C	125 °C	Automotive	20 %	25 mOhm	2.5 V	AEC-Q200	Molded	2000 Hrs	220 µF	Surface Mount	3.5 mm	0.11 "	2.8 mm	0.138 in	B	2.1 mm	0.083 in	3528 Metric	1411
KEMET T598D156M035ATE065	-55 C	125 °C	Automotive	20 %	65 mOhm	35 V	AEC-Q200	Molded	2000 Hrs	15 µF	Surface Mount	7.3 mm	0.169 "	4.3 mm	0.287 "	D	3.1 mm	0.122 in		2917 (7343 Metric)
KEMET T598V106M035ATE120	-55 C	125 °C	Automotive	20 %	120 mOhm	35 V	AEC-Q200	Molded	2000 Hrs	10 µF	Surface Mount	7.3 mm	0.169 "	4.3 mm	0.287 "	V				2917 (7343 Metric)	0.079 in	2 mm
KEMET T598V157M010ATE045	-55 C	125 °C	Automotive	20 %	45 mOhm	10 V	AEC-Q200	Molded	2000 Hrs	150 µF	Surface Mount	7.3 mm	0.169 "	4.3 mm	0.287 "	V				2917 (7343 Metric)	0.079 in	2 mm
KEMET T598B335M035ATE150	-55 C	125 °C	Automotive	20 %	150 mOhm	35 V	AEC-Q200	Molded	2000 Hrs	3.3 µF	Surface Mount	3.5 mm	0.11 "	2.8 mm	0.138 in	B	2.1 mm	0.083 in	3528 Metric	1411
KEMET T598X477M006ATE025	-55 C	125 °C	Automotive	20 %	25 mOhm	6.3 VDC	AEC-Q200	Molded	2000 Hrs	470 µF	Surface Mount	7.3 mm	0.169 "	4.3 mm	0.287 "	X				2917 (7343 Metric)	4.3 mm		0.169 in
KEMET T598X106M075ATE090	-55 C	125 °C	Automotive	20 %	90 mOhm	75 V	AEC-Q200	Molded	2000 Hrs	10 µF	Surface Mount	7.3 mm	0.169 "	4.3 mm	0.287 "	X				2917 (7343 Metric)	4.3 mm		0.169 in
