G-INB-M20 Series

Catalog

CABLE GLAND 6-13MM M20 POLYAMIDE

Part	Thread Length	Thread Length	Operating Temperature [Min]	Operating Temperature [Max]	Material	Color	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Includes	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Ingress Protection	Thread Size

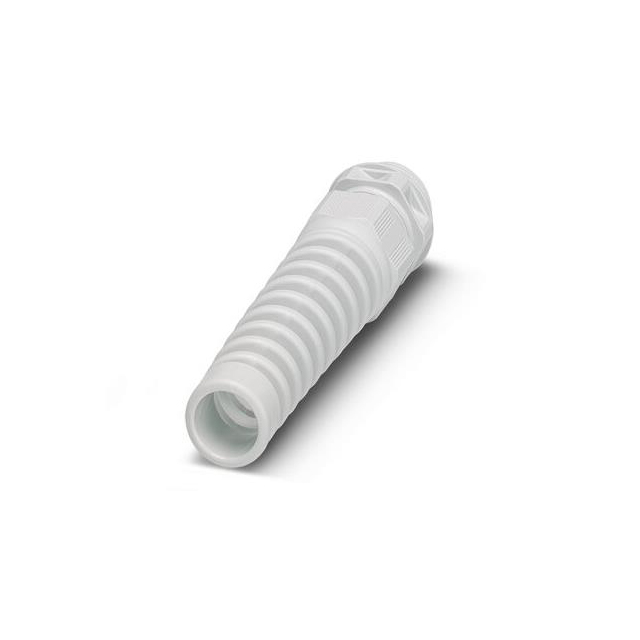

Phoenix Contact 1415174	12 mm	0.472 in	-40 C	100 °C	Polyamide (PA) Nylon	Light Gray	Cable Gland	0.512 in	13 mm	O-Ring Seal Strain Relief	6 mm	0.236 in	IP68 IP69	M20

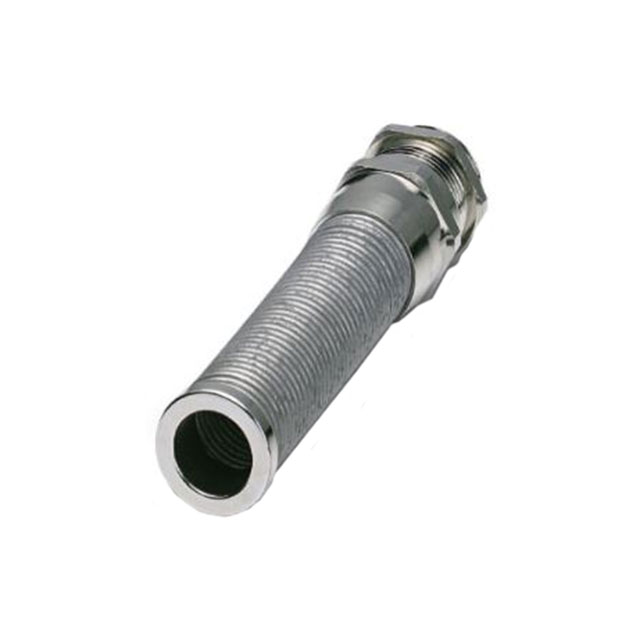

Phoenix Contact 1415182	6 mm	0.236 in	-40 C	100 °C	Brass Nickel Plated	Silver	Cable Gland	0.512 in	13 mm	O-Ring Seal Strain Relief	6 mm	0.236 in	IP68 IP69	M20

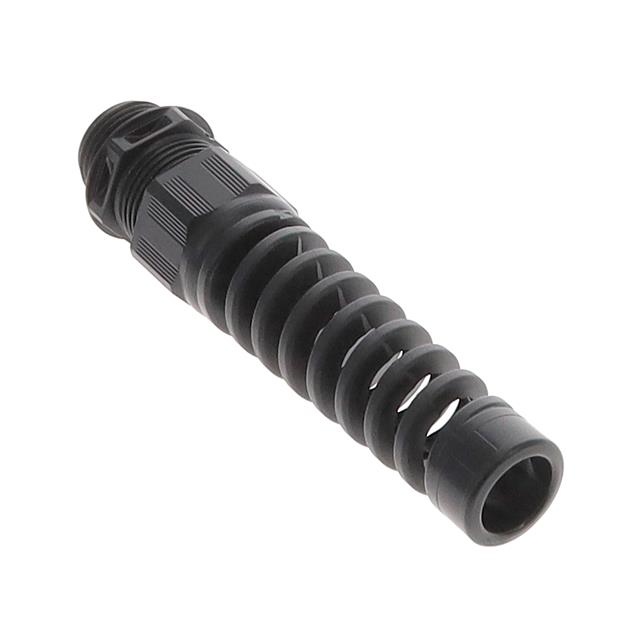

Phoenix Contact 1415179	12 mm	0.472 in	-40 C	100 °C	Polyamide (PA) Nylon	Black	Cable Gland	0.512 in	13 mm	O-Ring Seal Strain Relief	6 mm	0.236 in	IP68 IP69	M20
