INA226 Series

36V, 16-bit, ultra-precise i2c output current/voltage/power monitor w/alert

Catalog

36V, 16-bit, ultra-precise i2c output current/voltage/power monitor w/alert

Part	Mounting Type	Voltage - Input [Min]	Voltage - Input [Max]	Supplier Device Package	Function	Sensing Method	Current - Output	Package / Case	Package / Case [x]	Package / Case [x]	Operating Temperature [Max]	Operating Temperature [Min]	Accuracy	Type	Utilized IC / Part	Supplied Contents
Texas Instruments INA226AIDGSR	Surface Mount	0 V	36 V	10-VSSOP	Current Monitor	High/Low-Side	10 mA	10-MSOP 10-TFSOP	3 mm	0.118 in	125 °C	-40 °C	0.02 %
Texas Instruments INA226AIDGST	Surface Mount	0 V	36 V	10-VSSOP	Current Monitor	High/Low-Side	10 mA	10-MSOP 10-TFSOP	3 mm	0.118 in	125 °C	-40 °C	0.02 %

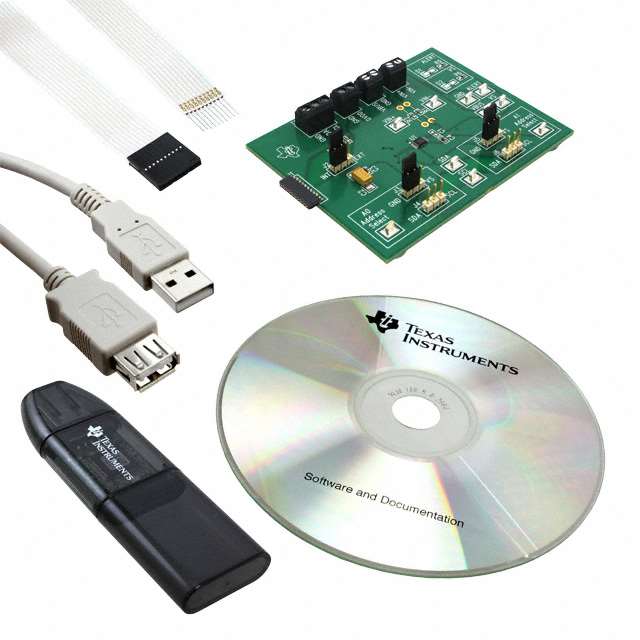

Texas Instruments INA226EVM					Current Monitor									Power Management	INA226	Board(s) Cable(s)

Catalog

36V, 16-bit, ultra-precise i2c output current/voltage/power monitor w/alert

Key Features

• Senses bus voltages from 0V to 36VHigh-side or low-side sensingReports current, voltage, and powerHigh accuracy:Gain error: 0.1% (maximum)Offset: 10µV (maximum)Configurable averaging options16 programmable addressesOperates from 2.7V to 5.5V power supply10-pin DGS (VSSOP) packageSenses bus voltages from 0V to 36VHigh-side or low-side sensingReports current, voltage, and powerHigh accuracy:Gain error: 0.1% (maximum)Offset: 10µV (maximum)Configurable averaging options16 programmable addressesOperates from 2.7V to 5.5V power supply10-pin DGS (VSSOP) package

Description
