AUB0524 Series

Catalog

DC AXIAL FAN, 24 V, SQUARE, 50 MM, 20 MM, SLEEVE BEARING, 18.3 CFM

Part	Current Rating (Amps)	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Material - Frame	Noise	Air Flow	Air Flow	Size / Dimension [x]	Size / Dimension [z]	Weight [custom]	Weight [custom]	Voltage - Rated	Static Pressure	Static Pressure	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Bearing Type	Fan Type	Width [y]	Termination	RPM	Approval Agency	Weight [custom]	Weight [custom]

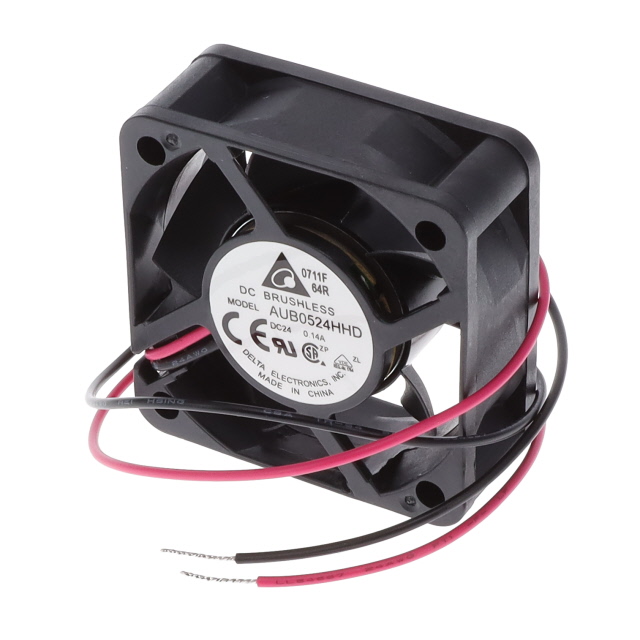

Delta Electronics AUB0524HHD	0.09 A	Plastic	27.6 VDC	14	40 °C 50000 Hrs	Plastic	37 dB	18.3 CFM	0.512 mł/min	50 mm	50 mm	32.21 g	0.071 lb	24 VDC	0.254 in H2O	63.3 Pa	2.16 W	-10 °C	60 °C	Superflo	Tubeaxial	20 mm	2 Wire Leads	6400 RPM	CE CSA UL VDE
Delta Electronics AUB0524VHD	100 mA	Plastic	27.6 VDC	14	40 °C 50000 Hrs	Plastic	40.5 dB(A)	20.3 CFM	0.568 m³/min	50 mm	50 mm			24 VDC	0.303 in H2O	75.5 Pa	2.4 W	-10 °C	60 °C	Superflo	Tubeaxial	20 mm	2 Wire Leads	7000 RPM	CE CSA UL VDE	0.085 lb	38.56 g
