SP1007-01WTG Series

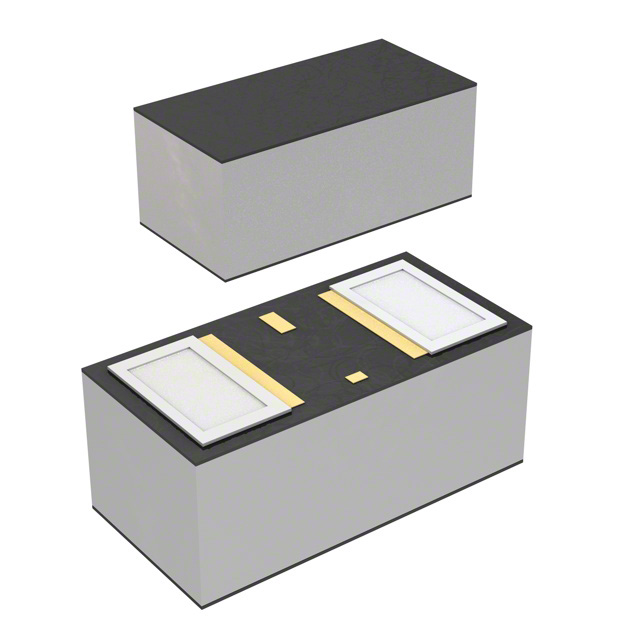

1Ch 6pF 8kV 6V TVS Diode 0201 Flip-Chip

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

1Ch 6pF 8kV 6V TVS Diode 0201 Flip-Chip

Part	Type	Supplier Device Package	Power Line Protection	Voltage - Breakdown (Min)	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Voltage - Reverse Standoff (Typ) [Max]	Mounting Type	Package / Case	Package / Case	Voltage - Clamping (Max) @ Ipp	Bidirectional Channels [custom]	Current - Peak Pulse (10/1000µs)
Littelfuse/Commercial Vehicle Products SP1007-01WTG	Zener	0201 FlipChip		7.8 V	-40 °C	125 ¯C	General Purpose	6 V	Surface Mount	0603 Metric	0201	9.2 V	1	5 A

Catalog

1Ch 6pF 8kV 6V TVS Diode 0201 Flip-Chip

Key Features

• ESD, IEC61000-4-2, ±8kV contact, ±16kV air

• EFT, IEC61000-4-4, 40A (5/50ns)

• Lightning, IEC 61000-4-5, 2nd Edition 2A (8/20μs)

• Low capacitance of 5pF(@ VR=5V)

• Low leakage current of 0.1μA at 5V

• Space efficient 0201 and 0402 footprint

• AEC-Q101 qualified for SOD882 package

• Moisture Sensitivity Level (MSL -1) for SOD882 package

• Halogen-free, lead-free and RoHS compliant

Description
