726-112 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 112POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Termination	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Color	Pitch	Pitch	Number of Positions/Bay/Row	Gender	Number of Rows [custom]	Contact Type	Read Out	Card Type	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Contact Finish

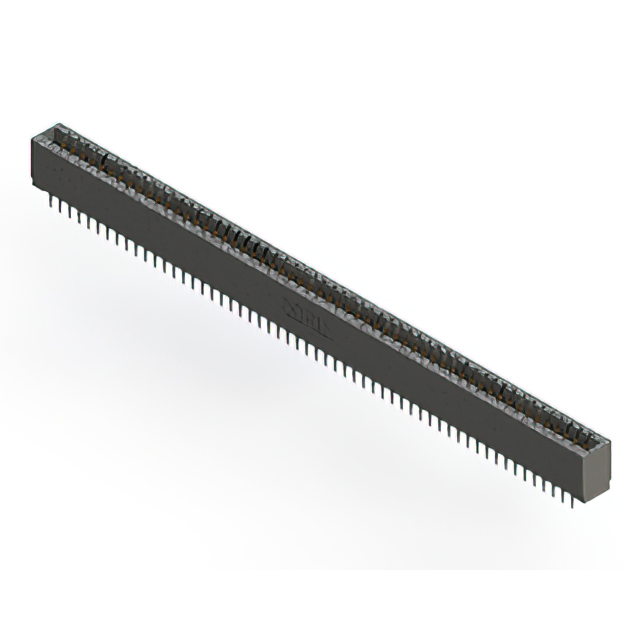

EDAC Inc. 726-112-520-201	Polyester Thermoplastic	2	Copper Alloy	30 Áin	0.76 Ám	Press-Fit	112	-40 C	105 ░C	Black	3.18 mm	0.125 in	56	Female	2	Cantilever	Dual	Non Specified - Dual Edge	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold

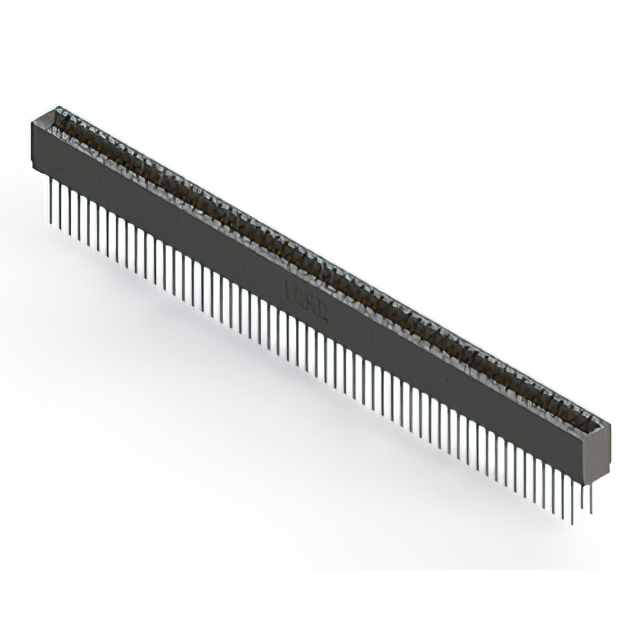

EDAC Inc. 726-112-545-201	Polyester Thermoplastic	2	Copper Alloy	30 Áin	0.76 Ám	Press-Fit Wire Wrap	112	-40 C	105 ░C	Black	3.18 mm	0.125 in	56	Female	2	Cantilever	Dual	Non Specified - Dual Edge	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold
EDAC Inc. 726-112-540-201	Polyester Thermoplastic	2	Copper Alloy	30 Áin	0.76 Ám	Press-Fit Wire Wrap	112	-40 C	105 ░C	Black	3.18 mm	0.125 in	56	Female	2	Cantilever	Dual	Non Specified - Dual Edge	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold

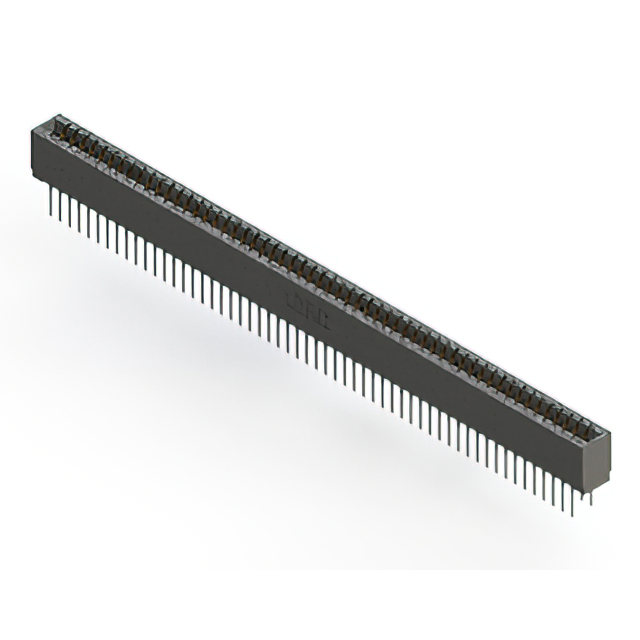

EDAC Inc. 726-112-527-201	Polyester Thermoplastic	2	Copper Alloy	30 Áin	0.76 Ám	Press-Fit	112	-40 C	105 ░C	Black	3.18 mm	0.125 in	56	Female	2	Cantilever	Dual	Non Specified - Dual Edge	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold
EDAC Inc. 726-112-553-201	Polyester Thermoplastic	2	Copper Alloy	30 Áin	0.76 Ám	Press-Fit Wire Wrap	112	-40 C	105 ░C	Black	3.18 mm	0.125 in	56	Female	2	Cantilever	Dual	Non Specified - Dual Edge	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold
