DE4 Series

Catalog

LED LGT BAR 15MM SQ YLW

Part	Configuration	Lens Type	Lens Style	Wavelength - Peak	Current	Voltage Rating	Color	Millicandela Rating	Lens Size	Mounting Type
Kingbright DE4SYKD	Bar - Single DIP	Diffused Tinted	Square with Flat Top	590 nm	175 mA	2 V	Yellow	380 mcd	15 mm	Through Hole

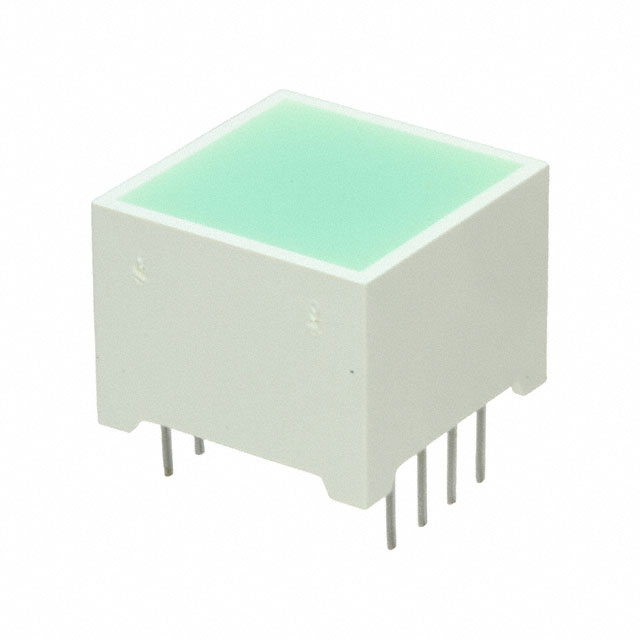

Kingbright DE4CGKD	Bar - Single DIP	Diffused Tinted	Square with Flat Top		150 mA	2.1 V	Green	77 mcd	15 mm	Through Hole
Kingbright DE4SGD	Bar - Single DIP	Diffused Tinted	Square with Flat Top	565 nm	25 mA		Green	64 mcd	15 mm	Through Hole

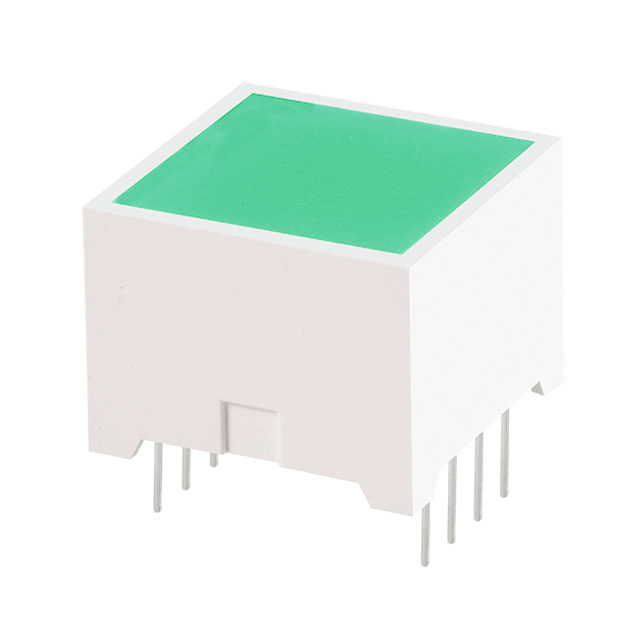

Kingbright DE4GD	Bar - Single DIP	Diffused Tinted	Square with Flat Top	565 nm	25 mA		Green	36 mcd	15 mm	Through Hole

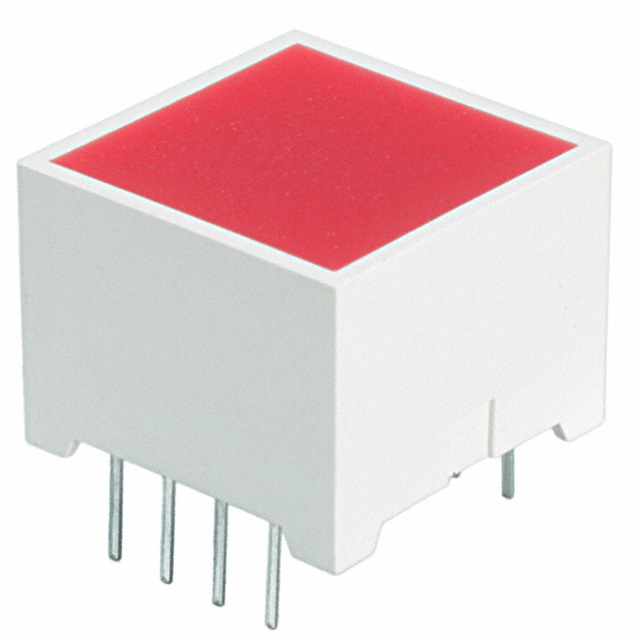

Kingbright DE4SRD	Bar - Single DIP	Diffused Tinted	Square with Flat Top	660 nm	30 mA	1.85 V	Red	340 mcd	15 mm	Through Hole
Kingbright DE4ID	Bar - Single DIP	Diffused Tinted	Square with Flat Top	627 nm	30 mA	2 V	Red	33 mcd	15 mm	Through Hole

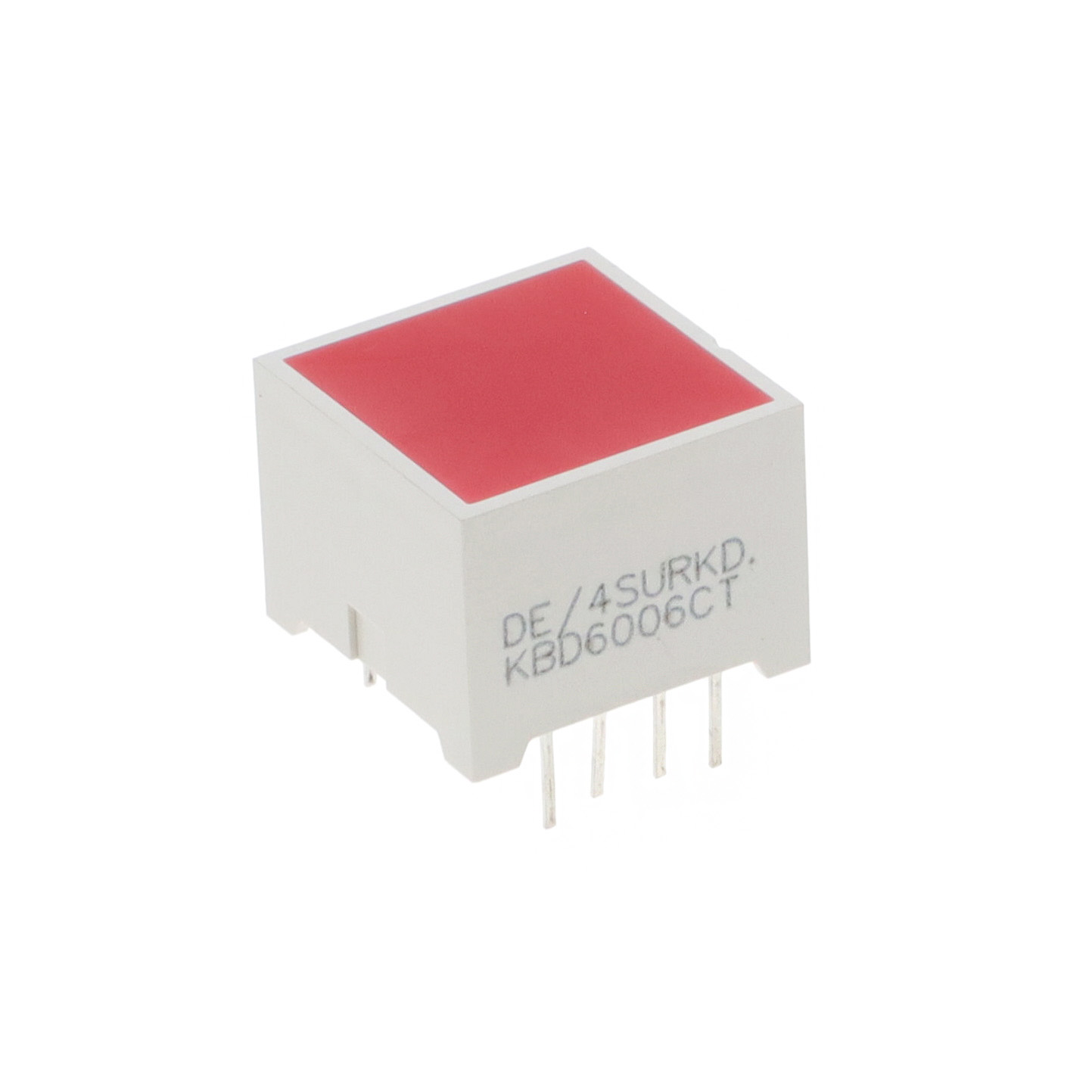

Kingbright DE4SURKD	Bar - Single DIP	Diffused Tinted	Square with Flat Top	645 nm	185 mA	1.95 V	Red	250 mcd	15 mm	Through Hole

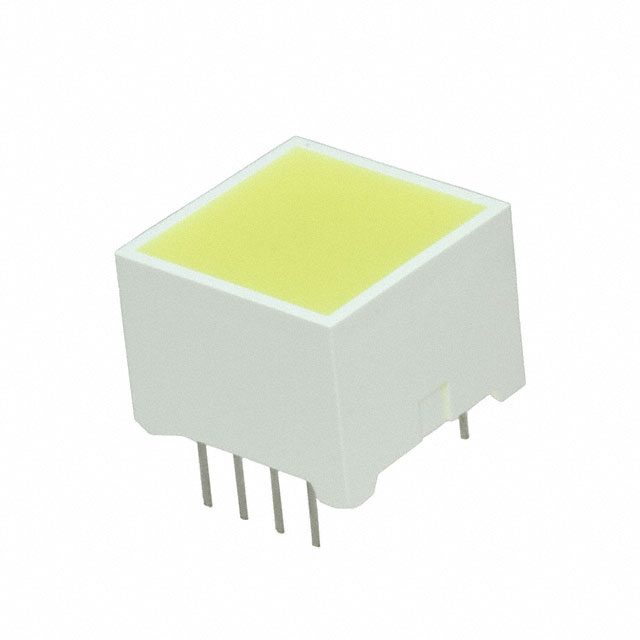

Kingbright DE4YD	Bar - Single DIP	Diffused Tinted	Square with Flat Top	590 nm	30 mA	2.1 V	Yellow	35 mcd	15 mm	Through Hole
