LK404 Series

Catalog

LCD MODULE 160 DIG 40 X 4

Part	Outline L x W x H [z]	Outline L x W x H [x]	Outline L x W x H [y]	Viewing Area [y]	Viewing Area [x]	Dot Size [custom]	Dot Size [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Characters	Character Format [x]	Character Format [y]	Character Size [y]	Character Size [z]	Display Format [y]	Display Format [x]	Interface	Background Color	Display Type	Text Color

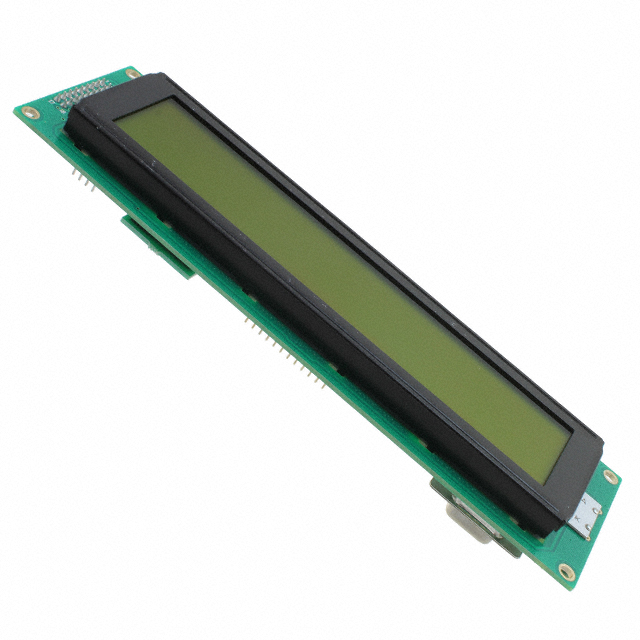

Matrix Orbital LK404-25-VPT	9.5 mm	190 mm	54 mm	42.9 mm	148 mm	0.5 mm	0.55 mm	50 °C	0 °C	4.75 V	5.25 V	160	5 Dots	8 Dots	2.78 mm	4.89 mm	4	40	I2C RS-232 TTL
Matrix Orbital LK404-25-E	29.18 mm	190 mm	54 mm	23.16 mm	140.45 mm	0.5 mm	0.55 mm	70 °C	-20 ░C	4.75 V	5.25 V	160	5 Dots	8 Dots	2.78 mm	4.89 mm	4	40	I2C RS-232 TTL	Yellow/Green	LCD - Monochrome	Black
Matrix Orbital LK404-25	29.18 mm	190 mm	54 mm	23.16 mm	140.45 mm	0.5 mm	0.55 mm	50 °C	0 °C	4.75 V	5.25 V	160	5 Dots	8 Dots	2.78 mm	4.89 mm	4	40	I2C RS-232 TTL	Yellow/Green	LCD - Monochrome	Black
Matrix Orbital LK404-25-VPT-E	29.18 mm	190 mm	54 mm	23.16 mm	140.45 mm	0.5 mm	0.55 mm	70 °C	-20 ░C	9 V	35 V	160	5 Dots	8 Dots	2.78 mm	4.89 mm	4	40	I2C RS-232 TTL	Yellow/Green	LCD - Monochrome	Black
