PTSA 1,5 Series

Catalog

WIRE-TO-BOARD TERMINAL BLOCK, 3.5 MM, 6 POSITIONS, 20 AWG, 16 AWG, 1.5 MM², PUSH IN

Part	Housing Material	Mating Orientation	Mating Orientation	Wire Termination	Positions Per Level	Color	Voltage	Number of Levels	Current	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Pitch	Pitch	Features	Positions Per Level [custom]

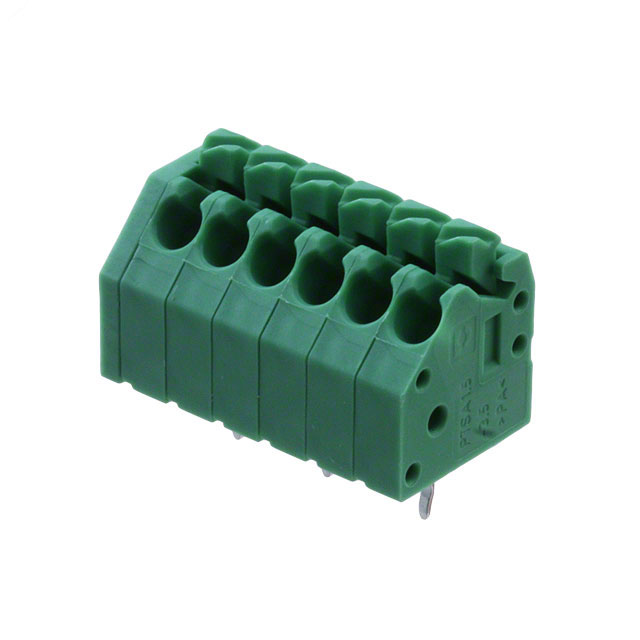

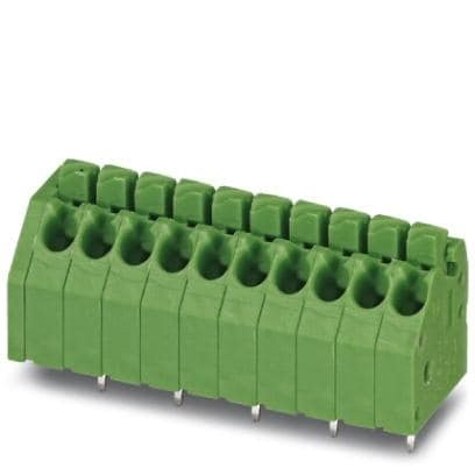

Phoenix Contact 1985234	Polyamide (PA) Nylon	135 °	45 °	Screwless - Spring Cage Tension Clamp	6	Green	300 VDC	1	2 A	Through Hole	24 AWG	16 AWG	3.5 mm	0.138 "

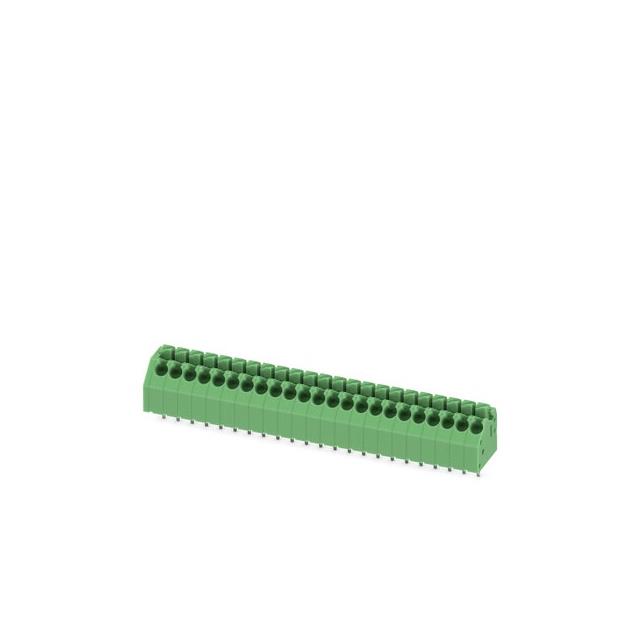

Phoenix Contact 1985179	Polyamide (PA) Nylon	135 °	45 °	Screwless - Spring Cage Tension Clamp	23	Green	300 VDC	1	2 A	Through Hole	24 AWG	16 AWG	3.5 mm	0.138 "
Phoenix Contact 1706309		135 °	45 °	Screwless - Spring Cage Tension Clamp			300 VDC	1	5 A	Through Hole	24 AWG	16 AWG	3.5 mm	0.138 "	Positions Stamped	7

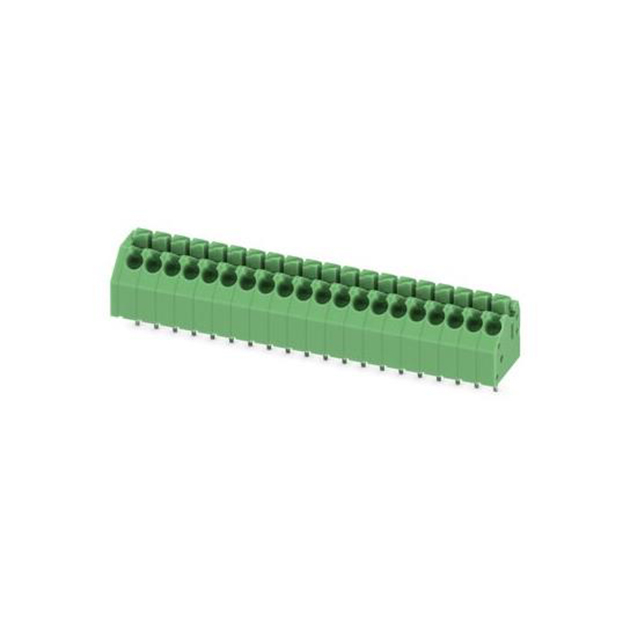

Phoenix Contact 1985140	Polyamide (PA) Nylon	135 °	45 °	Screwless - Spring Cage Tension Clamp	20	Green	300 VDC	1	2 A	Through Hole	24 AWG	16 AWG	3.5 mm	0.138 "
Phoenix Contact 1985001		135 °	45 °	Screwless - Spring Cage Tension Clamp	6	Green	300 VDC	1	2 A	Through Hole	24 AWG	16 AWG	3.5 mm	0.138 "
Phoenix Contact 1701057		135 °	45 °	Screwless - Spring Cage Tension Clamp	2	Yellow	300 VDC	1	2 A	Through Hole	24 AWG	16 AWG	3.5 mm	0.138 "
Phoenix Contact 1985357	Polyamide (PA) Nylon	135 °	45 °	Screwless - Spring Cage Tension Clamp	18	Green	300 VDC	1	2 A	Through Hole	24 AWG	16 AWG	3.5 mm	0.138 "

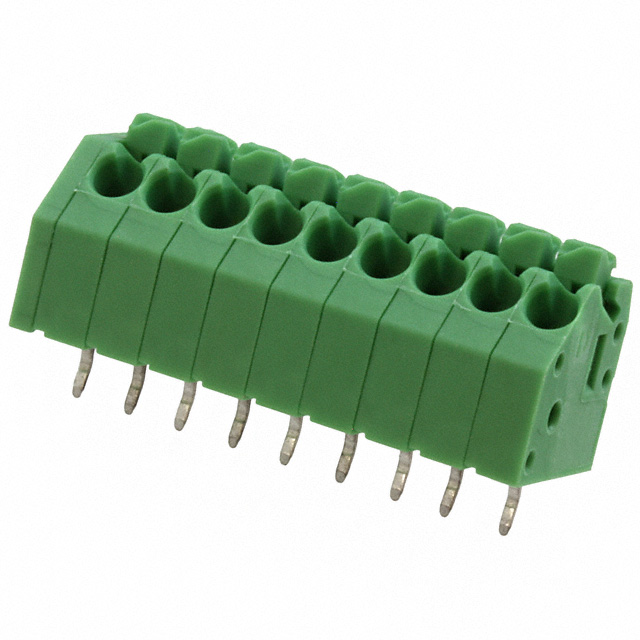

Phoenix Contact 1985030	Polyamide (PA) Nylon	135 °	45 °	Screwless - Spring Cage Tension Clamp	9	Green	300 VDC	1	2 A	Through Hole	24 AWG	16 AWG	3.5 mm	0.138 "

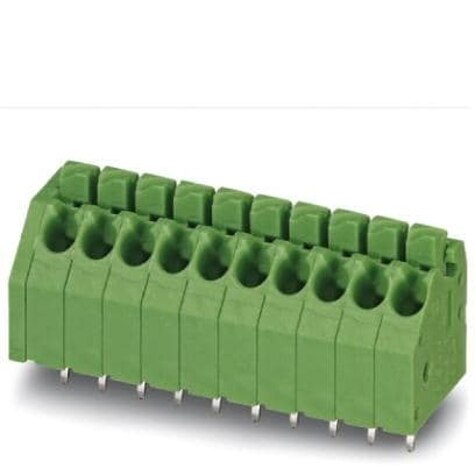

Phoenix Contact 1711556		135 °	45 °	Screwless - Spring Cage Tension Clamp	3		300 VDC	1	5 A	Through Hole	24 AWG	16 AWG	3.5 mm	0.138 "
