2311768 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

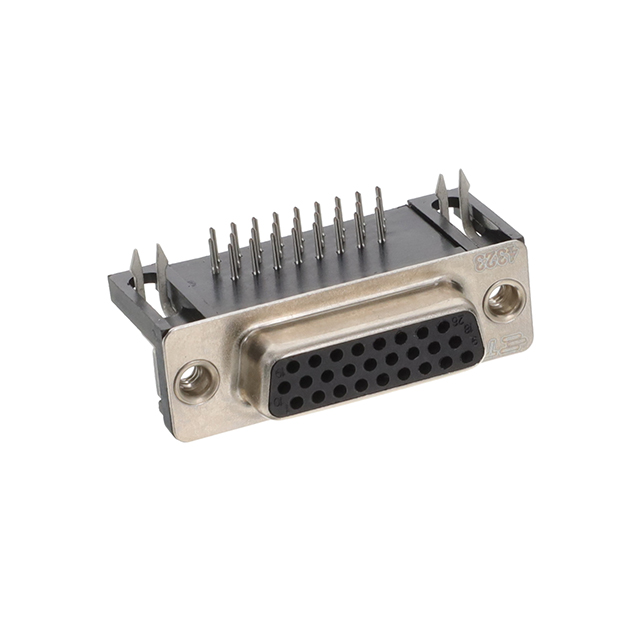

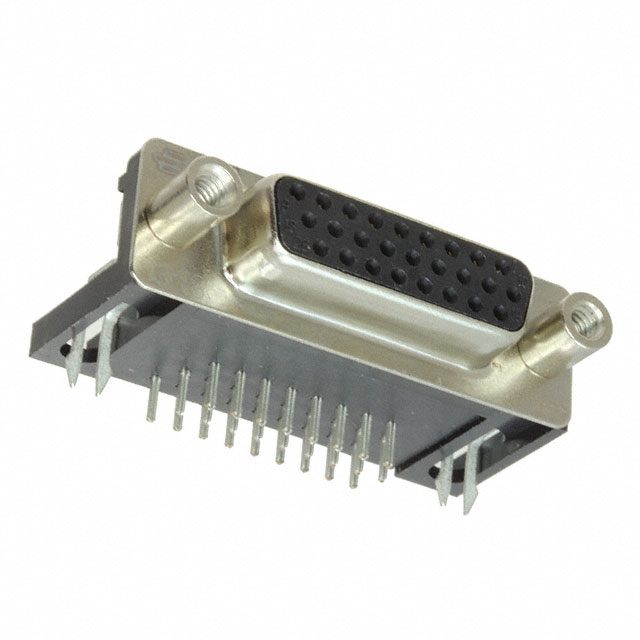

CONN D-SUB HD RCPT 26P R/A SLDR
| Part | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Shell Material, Finish | Color | Backset Spacing | Backset Spacing | Contact Finish | Contact Material | Dielectric Material | Mounting Type | Number of Positions | Connector Style | Flange Feature | Shell Size, Connector Layout | Shell Size, Connector Layout | Termination | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 3 | 0.76 Ám | 30 Áin | Signal | Receptacle Female Sockets | 105 ░C | -55 °C | UL94 V-0 | Nickel Plated Steel | Black | 8.89 mm | 0.35 in | Gold | Phosphor Bronze | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole Right Angle | 26 | D-Sub High Density | Female Screwlock (4-40) Mating Side | 2 | (DA A) High Density | Solder | 3 A |
 TE Connectivity Raychem Cable Protection | 3 | 0.76 Ám | 30 Áin | Signal | Receptacle Female Sockets | 105 ░C | -55 °C | UL94 V-0 | Nickel Plated Steel | Black | 8.89 mm | 0.35 in | Gold | Brass | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole Right Angle | 26 | D-Sub High Density | Housing/Shell (4-40) | 2 | (DA A) High Density | Solder | 3 A |
