2032-11 Series
Manufacturer: Oupiin
Beta
⌘K

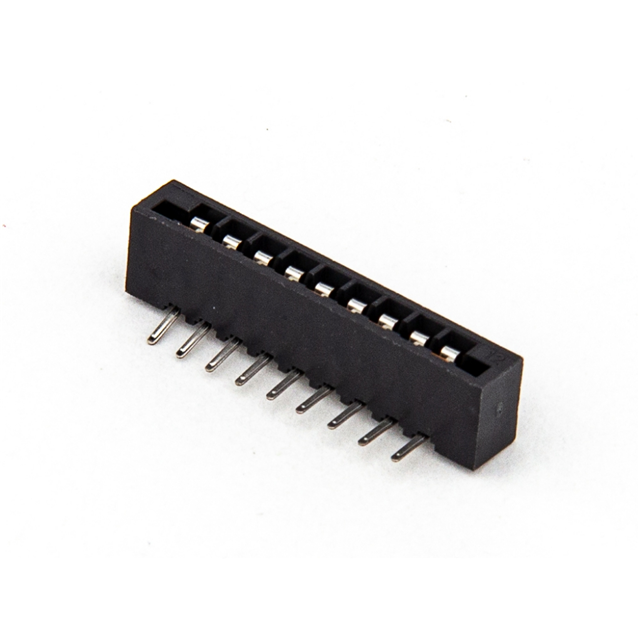

CONN FFC FPC 11POS 2.54MM R/A
| Part | Housing Color | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Housing Material | Pitch | Pitch | Mounting Type | Flat Flex Type | Material Flammability Rating | Voltage Rating | Contact Finish | Contact Material | Number of Positions | FFC, FCB Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Cable End Type | Height Above Board [z] | Height Above Board [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Oupiin | Black | 3 A | 30 Áin | 0.76 Ám | Polybutylene Terephthalate (PBT) | 0.1 " | 2.54 mm | Right Angle Through Hole | FFC FPC | UL94 V-0 | 250 V | Tin | Phosphor Bronze | 11 | 0.3 mm | 85 °C | -25 °C | Solder | Straight | 0.179 in | 4.55 mm |
