422207 Series

Catalog

HOOKUP STRND 22AWG GRN/YLW 1000'

Part	Jacket (Insulation) Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage	Wire Gauge	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Length	Length	Cable Type
ALPHA WIRE 422207 GY001	Poly-Vinyl Chloride (PVC)	80 C	-10 °C	300 V	22 AWG	UL Style 1061	0.25 mm	0.01 in	0.05 in	1.27 mm	Copper Tinned	7	30 AWG	Green Yellow Stripe	1000 ft	304.8 m	Hook-Up
ALPHA WIRE 422207 BR013	Poly-Vinyl Chloride (PVC)	80 C	-10 °C	300 V	22 AWG	UL Style 1061	0.25 mm	0.01 in	0.05 in	1.27 mm	Copper Tinned	7	30 AWG	Brown			Hook-Up

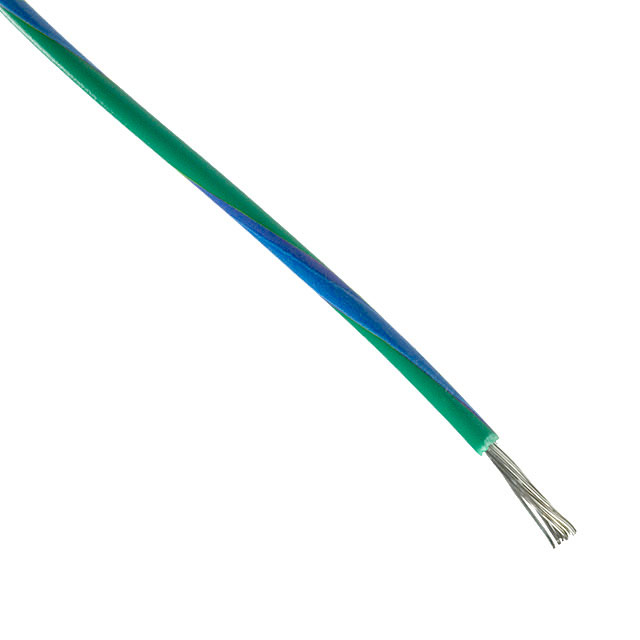

ALPHA WIRE 422207 GU013	Poly-Vinyl Chloride (PVC)	80 C	-10 °C	300 V	22 AWG	UL Style 1061	0.25 mm	0.01 in	0.05 in	1.27 mm	Copper Tinned	7	30 AWG	Green Blue Stripe			Hook-Up
ALPHA WIRE 422207 WH013	Poly-Vinyl Chloride (PVC)	80 C	-10 °C	300 V	22 AWG	UL Style 1061	0.25 mm	0.01 in	0.05 in	1.27 mm	Copper Tinned	7	30 AWG				Hook-Up
ALPHA WIRE 422207 BK013	Poly-Vinyl Chloride (PVC)	80 C	-10 °C	300 V	22 AWG	UL Style 1061	0.25 mm	0.01 in	0.05 in	1.27 mm	Copper Tinned	7	30 AWG	Black			Hook-Up
ALPHA WIRE 422207 GV013	Poly-Vinyl Chloride (PVC)	80 C	-10 °C	300 V	22 AWG	UL Style 1061	0.25 mm	0.01 in	0.05 in	1.27 mm	Copper Tinned	7	30 AWG	Green Violet Stripe			Hook-Up
