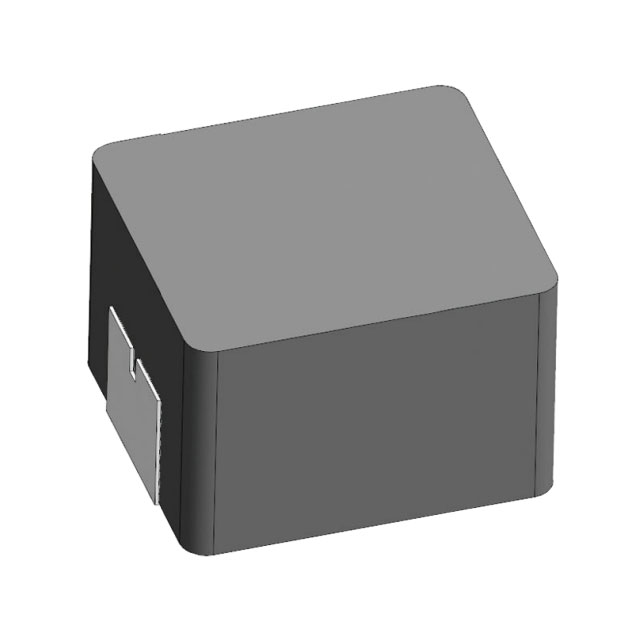

AMPLA7050S Series
Manufacturer: Abracon LLC
Beta
⌘K
POWER INDUCTORS - SMD IND 22.00 UH 2.500 A 170.00 MOHM
| Part | Tolerance | Inductance | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Material - Core | Package / Case | Current - Saturation (Isat) | Inductance Frequency - Test | Type | Current Rating (Amps) | DC Resistance (DCR) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Abracon LLC | 20 % | 22 µH | Shielded | -55 C | 125 °C | 0.197 in | 5 mm | Carbonyl Powder | Nonstandard | 5.5 A | 100 kHz | Molded | 2.5 A | 170 mOhm | 6.6 mm | 0.287 " | 0.26 in | 7.3 mm | Surface Mount |
Abracon LLC | 20 % | 4.7 ÁH | Shielded | -55 C | 125 °C | 0.197 in | 5 mm | Carbonyl Powder | Nonstandard | 10 A | 100 kHz | Molded | 6.5 A | 6.6 mm | 0.287 " | 0.26 in | 7.3 mm | Surface Mount |
