9CR0612 Series

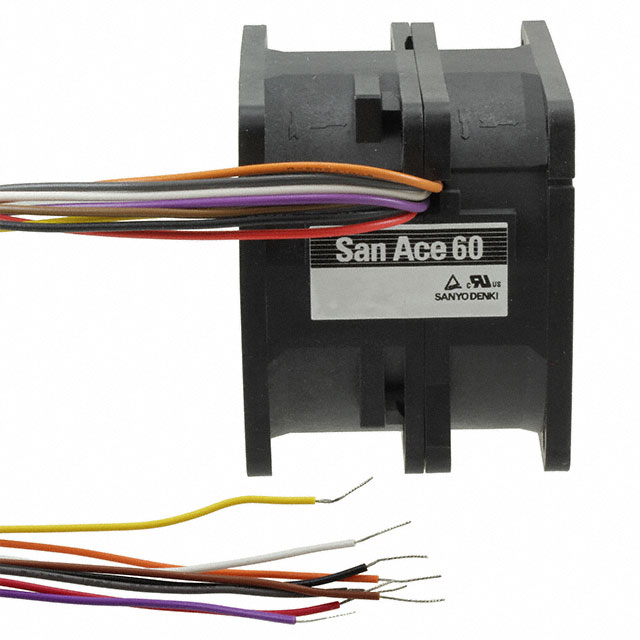

DC Fans DC Axial Fan, 60x60x51mm, 12VDC, Counter Rotating, Tachometer

Manufacturer: Sanyo Denki America Inc.

Catalog

DC Fans DC Axial Fan, 60x60x51mm, 12VDC, Counter Rotating, Tachometer

Catalog

DC Fans DC Axial Fan, 60x60x51mm, 12VDC, Counter Rotating, Tachometer

Part	Current Rating (Amps)	Lifetime @ Temp.	Material - Frame	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Features	Power (Watts)	Bearing Type	Width [x]	Approval Agency	Termination	Weight [custom]	Weight [custom]	Static Pressure	Static Pressure	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [x]	RPM [custom]	RPM [custom]	Fan Type	Air Flow	Air Flow	Noise	Weight	Weight	Termination
Sanyo Denki America Inc. 9CR0612S001	3.2 A	40000 Hrs	Plastic	Plastic	10.8 VDC	13.2 VDC	Counter-Rotating	38.4 W	Ball	76 mm	CSA TUV UR	3	0.507 lb	229.97 g	2.21 in H2O	550.5 Pa	12 VDC	-10 °C	60 °C	60 mm	60 mm	7000 RPM	11500 RPM	Tubeaxial (Dual)	2.24 m³/min	80 CFM
Sanyo Denki America Inc. 9CR0612H001	2.7 A				10.8 VDC	13.2 VDC		32.4 W	Ball	76 mm		3			1.81 in H2O	450.8 Pa	12 VDC			60 mm	60 mm	6500 RPM	10300 RPM	Tubeaxial (Dual)	1.96 m³/min	70 CFM	64 dB(A)	180.08 g	0.397 lb
Sanyo Denki America Inc. 9CR0612H501									Ball	51 mm	CSA TUV UL						12 VDC			60 mm	60 mm			Tubeaxial (Dual)						3 Wire Leads
Sanyo Denki America Inc. 9CR0612P5H03	2 A	40000 Hrs	Plastic	Plastic	10.8 VDC	13.2 VDC		24 W	Ball	51 mm	CSA TUV UL	4			2.01 in H2O	500.7 Pa	12 VDC	-20 ░C	70 °C	60 mm	60 mm			Tubeaxial (Dual)	1.83 m³/min	65.3 CFM	65 dB	180.08 g	0.397 lb
Sanyo Denki America Inc. 9CR0612G501	2.7 A	40000 Hrs	Plastic	Plastic	10.8 VDC	13.2 VDC	Counter-Rotating Locked Rotor Protection Speed Sensor (Tach)	32.4 W	Ball	51 mm	CSA TUV UL	3			2.41 in H2O	600 Pa	12 VDC	-20 ░C	70 °C	60 mm	60 mm	9000 RPM	11500 RPM	Tubeaxial (Dual)	2.01 m³/min	71.7 CFM	68 dB	180.08 g	0.397 lb
Sanyo Denki America Inc. 9CR0612P0H03	2.7 A	40000 Hrs	Plastic	Plastic	10.8 VDC	13.2 VDC	Counter-Rotating		Ball	76 mm	CSA TUV UR	4	0.507 lb	229.97 g	1.81 in H2O	450.8 Pa	12 VDC	-10 °C	60 °C	60 mm	60 mm	6500 RPM	10300 RPM	Tubeaxial (Dual)	1.96 m³/min	69.9 CFM	64 dB(A)
