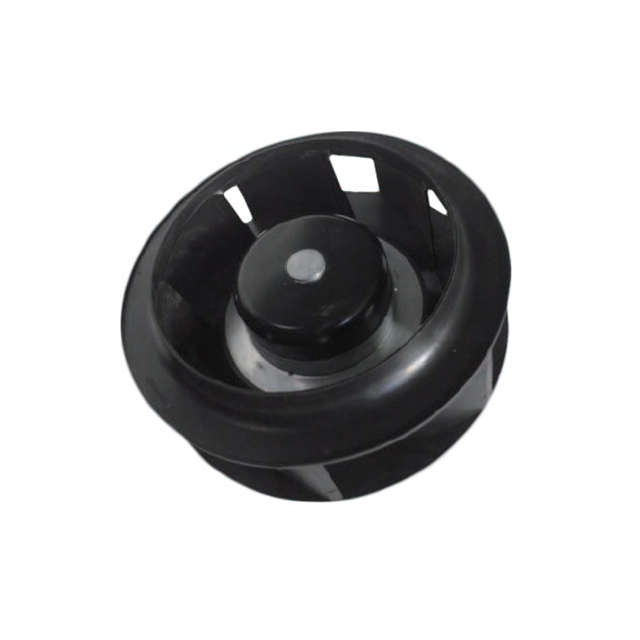

MSI1769 Series

Catalog

FAN IMP MTRZD 175X69MM 24VDC

Part	Material - Blade	Current Rating (Amps)	Bearing Type	Voltage - Rated	Static Pressure	Static Pressure	Weight [custom]	Weight [custom]	Noise	Fan Type	Size / Dimension	Size / Dimension [diameter]	RPM	Width [y]	Features	Air Flow	Air Flow	Approval Agency	Termination
Mechatronics Fan Group MSI1769H24B1-BBR	Plastic	4.6 A	Ball	24 VDC	448.4 Pa	1.8 in H2O	2.9 lbs	1.3 kg	72 dB(A)	Motorized Impellers	Round	175 mm	4000 RPM	69 mm	Auto Restart Speed Sensor (Tach)	9.66 m³/min	345 CFM	CE cUL TUV UL	3 Wire Leads
Mechatronics Fan Group MSI1769H48B-BBR	Plastic	2.3 A	Ball	48 VDC	448.4 Pa	1.8 in H2O	2.9 lbs	1.3 kg	72 dB(A)	Motorized Impellers	Round	175 mm	4000 RPM	69 mm	Auto Restart	9.66 m³/min	345 CFM	CE cUL TUV UL	2 Wire Leads
Mechatronics Fan Group MSI1769H24B2-BBR	Plastic	4.6 A	Ball	24 VDC	448.4 Pa	1.8 in H2O	2.9 lbs	1.3 kg	72 dB(A)	Motorized Impellers	Round	175 mm	4000 RPM	69 mm	Auto Restart Locked Rotor Sensor	9.66 m³/min	345 CFM	CE cUL TUV UL	3 Wire Leads
Mechatronics Fan Group MSI1769H48B1+7-BBR	Plastic	2.3 A	Ball	48 VDC	448.4 Pa	1.8 in H2O	2.9 lbs	1.3 kg	72 dB(A)	Motorized Impellers	Round	175 mm	4000 RPM	69 mm	Auto Restart Speed Sensor (Tach) Voltage Control	9.66 m³/min	345 CFM	CE cUL TUV UL	3 Wire Leads
Mechatronics Fan Group MSI1769H24B1+6-BBR	Plastic	4.6 A	Ball	24 VDC	448.4 Pa	1.8 in H2O	2.9 lbs	1.3 kg	72 dB(A)	Motorized Impellers	Round	175 mm	4000 RPM	69 mm	Auto Restart PWM Control Speed Sensor (Tach)	9.66 m³/min	345 CFM	CE cUL TUV UL	4 Wire Leads
