VAOL-S12 Series

Catalog

LED YLW-GRN CLEAR 1206 SMD

Part	Supplier Device Package	Millicandela Rating	Size / Dimension [x]	Size / Dimension [y]	Color	Height (Max) [Max] [z]	Configuration	Lens Style	Current - Test	Mounting Type	Lens Color	Wavelength - Dominant	Lens Transparency	Lens Size [y]	Lens Size [x]	Package / Case	Wavelength - Peak	Viewing Angle	Voltage - Forward (Vf) (Typ)
Visual Communications Company - VCC VAOL-S12GT4	1206	15 mcd	3.2 mm	1.5 mm	Yellow-Green	1.3 mm	Standard	Rectangle with Flat Top	20 mA	Surface Mount	Colorless	573 nm	Clear	1.5 mm	2 mm	1206 (3216 Metric)	575 nm	130 °	2 V

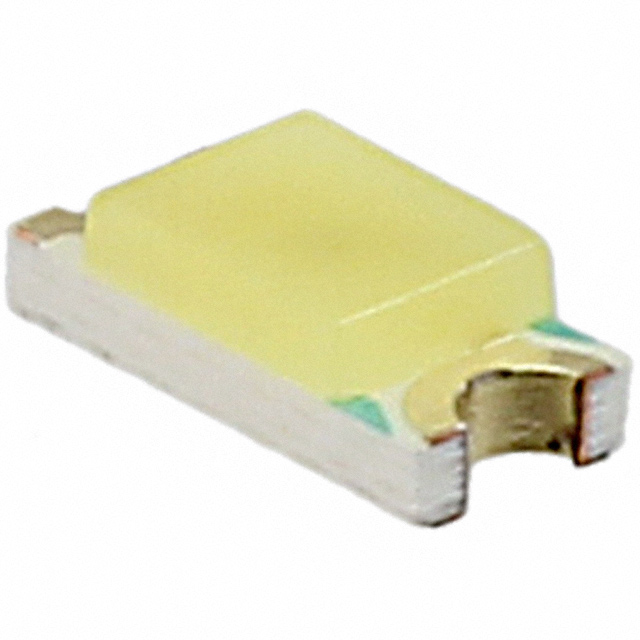

Visual Communications Company - VCC VAOL-S12WR4	1206	72 mcd	3.2 mm	1.5 mm	White	1.3 mm	Standard	Rectangle with Flat Top	5 mA	Surface Mount	Yellow		Diffused	1.5 mm	2 mm	1206 (3216 Metric)		140 °	2.9 V

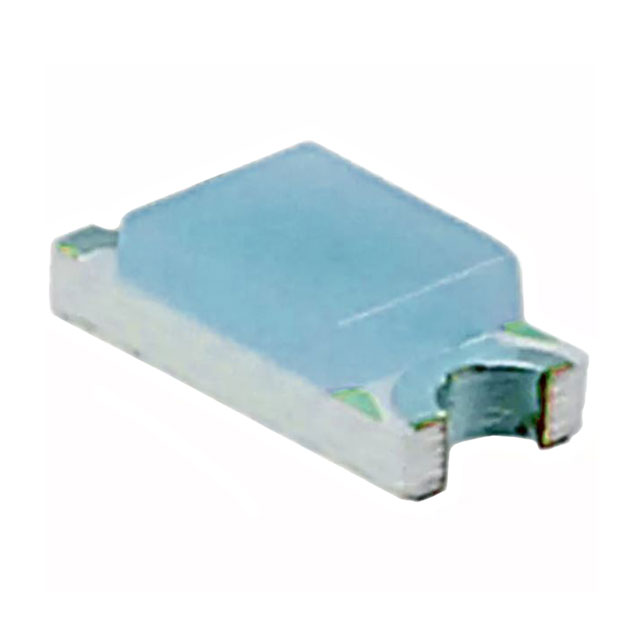

Visual Communications Company - VCC VAOL-S12SB4	1206	50 mcd	3.2 mm	1.5 mm	Blue	1.3 mm	Standard	Rectangle with Flat Top	20 mA	Surface Mount	Colorless	471 nm	Clear	1.5 mm	2 mm	1206 (3216 Metric)	468 nm	130 °	3.5 V
