ERA.00.250 Series

Manufacturer: LEMO

Catalog

CONN PNL MNT RCPT COAX SKT SLDER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Center Contact Plating	Mating Cycles	Voltage Rating	Includes	Body Material	Body Finish	Ingress Protection	Connector Style	Fastening Type	Mounting Feature	Impedance	Housing Color	Center Contact Material	Mounting Type	Shield Termination	Connector Type	Contact Termination	Number of Ports

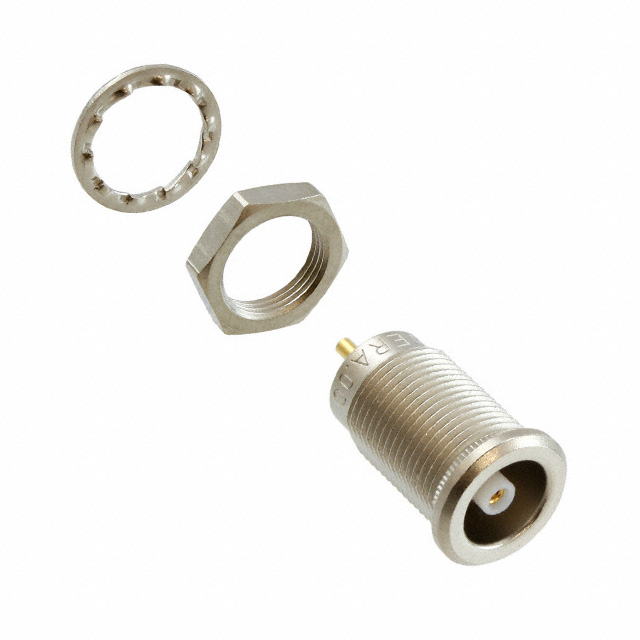

LEMO ERA.00.250.NLL	-55 C	260 °C	Polyetheretherketone (PEEK)	Gold	5000	700 VDC	1 Connector 1 Lockwasher 1 Nut	Brass	Nickel	IP50 - Dust Protected	NIM-CAMAC CD/N 549	Push-Pull	Bulkhead - Rear Side Nut	50 Ohms	Silver	Bronze	Panel Mount	Solder	Receptacle Female Socket	Solder Cup

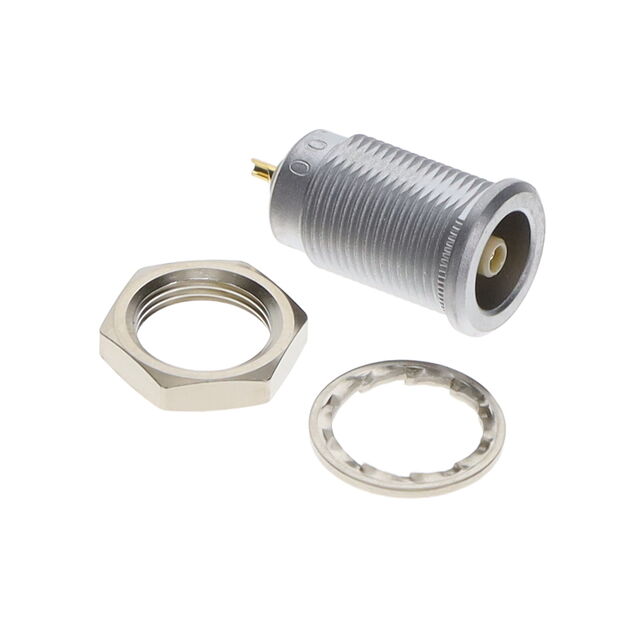

LEMO ERA.00.250.CLL	-55 C	260 °C	Polyetheretherketone (PEEK)	Gold	5000	700 VDC	1 Connector 1 Lockwasher 1 Nut	Brass	Chrome	IP50 - Dust Protected	NIM-CAMAC CD/N 549	Push-Pull	Bulkhead - Rear Side Nut	50 Ohms	Silver	Bronze	Panel Mount	Solder	Receptacle Female Socket	Solder Cup	1

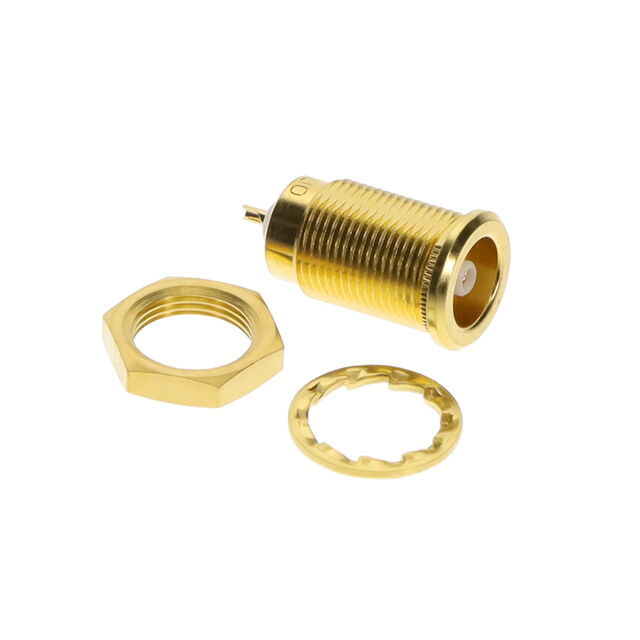

LEMO ERA.00.250.DTL	-55 C	260 °C	Polytetrafluoroethylene (PTFE)	Gold	5000	700 VDC	1 Connector 1 Lockwasher 1 Nut	Brass	Gold	IP50 - Dust Protected	NIM-CAMAC CD/N 549	Push-Pull	Bulkhead - Rear Side Nut	50 Ohms	Gold	Bronze	Panel Mount	Solder	Receptacle Female Socket	Solder Cup	1
