LPPB111 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

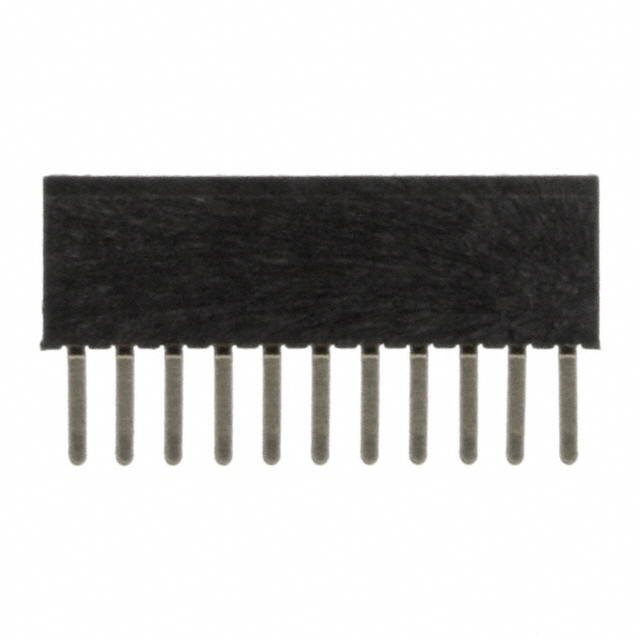

CONN HDR 11POS 0.05 GOLD PCB
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Contact Material | Contact Shape | Contact Finish Thickness - Post | Number of Positions | Contact Finish Thickness - Mating | Number of Rows | Contact Finish - Mating | Termination | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Fastening Type | Material Flammability Rating | Contact Finish - Post | Contact Type | Number of Positions Loaded | Mounting Type | Contact Length - Post | Contact Length - Post | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | -40 C | 105 ░C 125 °C | Liquid Crystal Polymer (LCP) | Phosphor Bronze | Square | Flash | 11 | Flash | 1 | Gold | Solder | 1.27 mm | 0.05 in | 0.177 in | 4.5 mm | Push-Pull | UL94 V-0 | Gold | Female Socket | All | Through Hole | 0.118 in | 3 mm | Header |
