MFS-11 Series

Catalog

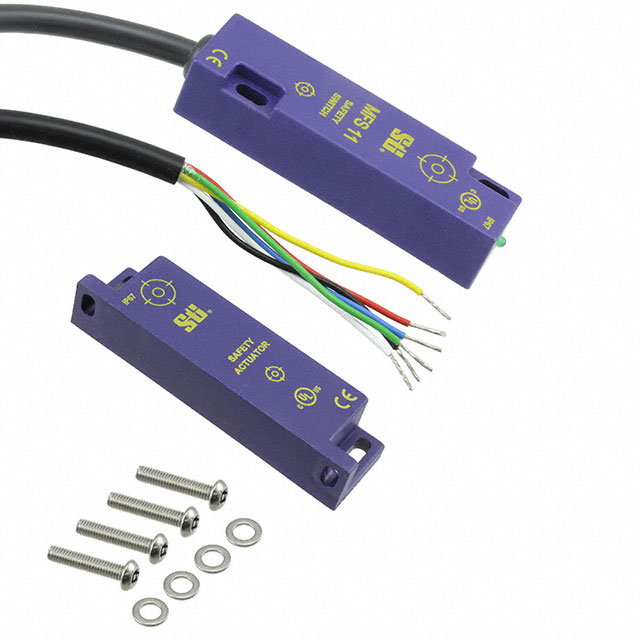

INTERLOCK MAGNETIC DPST

Part	Voltage Rating	Circuit	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Current Rating (Amps)	Features	Must Release [Min]	Must Release [Max]	Approval Agency	Actuator Type	Voltage - Supply	Type	Must Operate [Max]	Must Operate [Min]	Termination Style	Ingress Protection
Omron Electronics Inc-EMC Div MFS-11P11C3	30 VDC 230 VAC	DPST-NO/NC	55 °C	-10 °C	2 A	Status Indicator	10 mm	12 mm	CE cULus	Non-Contact	24 VDC	Magnetic	9 mm	6 mm	Cable Leads	IP67 - Dust Tight Waterproof
Omron Electronics Inc-EMC Div MFS-11P20CC5	30 VDC 230 VAC	DPST-NC	55 °C	-10 °C	2 A	Status Indicator	10 mm	12 mm	CE cULus	Non-Contact	24 VDC	Magnetic	9 mm	6 mm	Connector (Micro 1/2"-20)	IP67 - Dust Tight Waterproof
Omron Electronics Inc-EMC Div MFS-11P20C10	30 VDC 230 VAC	DPST-NC	55 °C	-10 °C	2 A	Status Indicator	10 mm	12 mm	CE cULus	Non-Contact	24 VDC	Magnetic	9 mm	6 mm	Cable Leads	IP67 - Dust Tight Waterproof
Omron Electronics Inc-EMC Div MFS-11P20CC	30 VDC 230 VAC	DPST-NC	55 °C	-10 °C	2 A	Status Indicator	10 mm	12 mm	CE cULus	Non-Contact	24 VDC	Magnetic	9 mm	6 mm	Connector (Micro 1/2"-20)	IP67 - Dust Tight Waterproof
Omron Electronics Inc-EMC Div MFS-11P11CC	30 VDC 230 VAC	DPST-NO/NC	55 °C	-10 °C	2 A	Status Indicator	10 mm	12 mm	CE cULus	Non-Contact	24 VDC	Magnetic	9 mm	6 mm	Connector (Micro 1/2"-20)	IP67 - Dust Tight Waterproof
