172765 Series
Manufacturer: Molex
Beta
⌘K

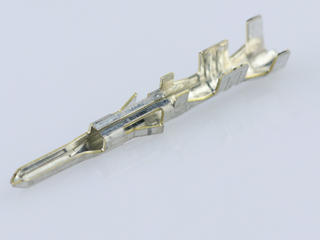

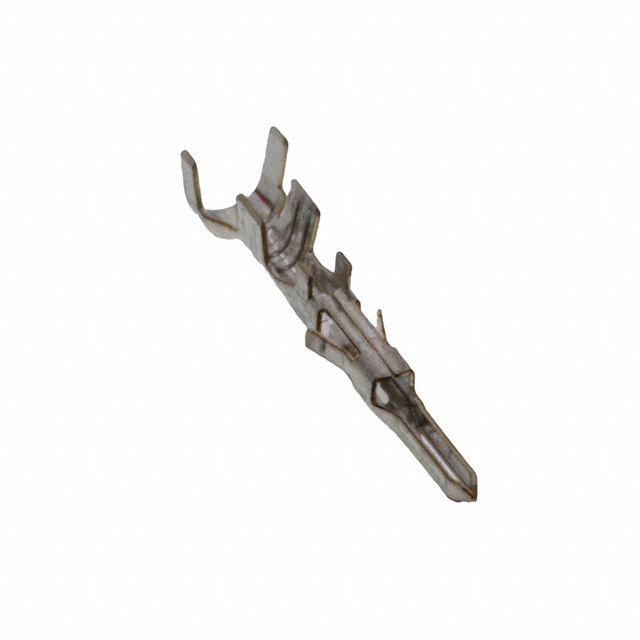

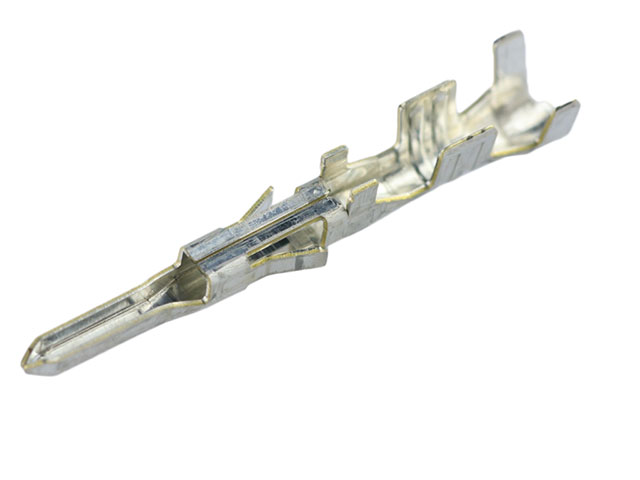

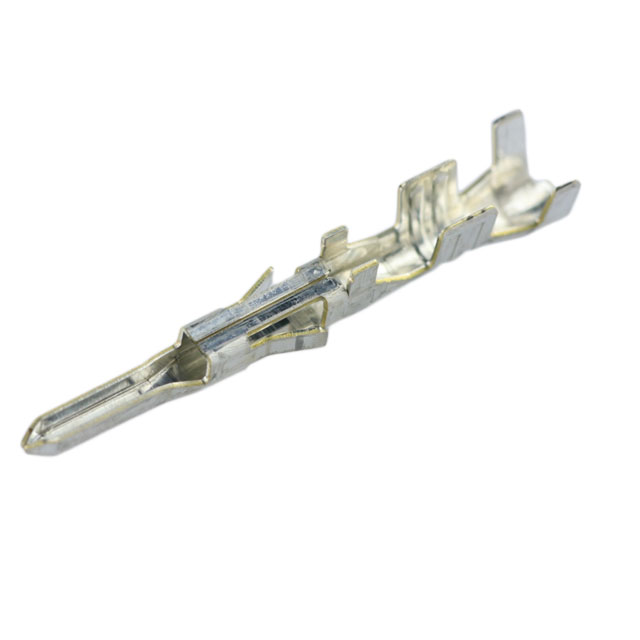

MINI-FIT TPA2/SIGMA MALE CRIMP TERMINAL, BRASS, PRE-PLATED TIN (SN), 24-22 AWG, 1.07-1.65MM INSULATION DIAMETER, BAG
| Part | Contact Termination | Contact Finish | Pin or Socket | Contact Finish Thickness | Contact Finish Thickness | Type | Wire Gauge [Max] | Wire Gauge [Min] | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|
 Molex | Crimp | Tin | Split Pin | 2.5 µm | 98.4 µin | Stamped | 24 AWG | 22 AWG | |
 Molex | Crimp | Tin | Split Pin | 2.5 µm | 98.4 µin | Stamped | 16 AWG | ||
 Molex | Crimp | Tin | Split Pin | 2.5 µm | 98.4 µin | Stamped | 20 AWG | 17.5 AWG | |
 Molex | Crimp | Tin | Split Pin | 2.5 µm | 98.4 µin | Stamped | 20 AWG | 17.5 AWG | |
 Molex | Crimp | Tin | Split Pin | 2.5 µm | 98.4 µin | Stamped | 24 AWG | 22 AWG | |
 Molex | Crimp | Tin | Split Pin | 2.5 µm | 98.4 µin | Stamped | 16 AWG | ||
 Molex | Crimp | Tin | Split Pin | 2.5 µm | 98.4 µin | Stamped | 24 AWG | 22 AWG | |
Molex | Crimp | Tin | Split Pin | 2.5 µm | 98.4 µin | Stamped | 16 AWG | ||
Molex | Crimp | Tin | Split Pin | 2.5 µm | 98.4 µin | Stamped | 24 AWG | 22 AWG | |
 Molex | Crimp | Tin | Split Pin | 2.5 µm | 98.4 µin | Stamped | 20 AWG | 17.5 AWG |
