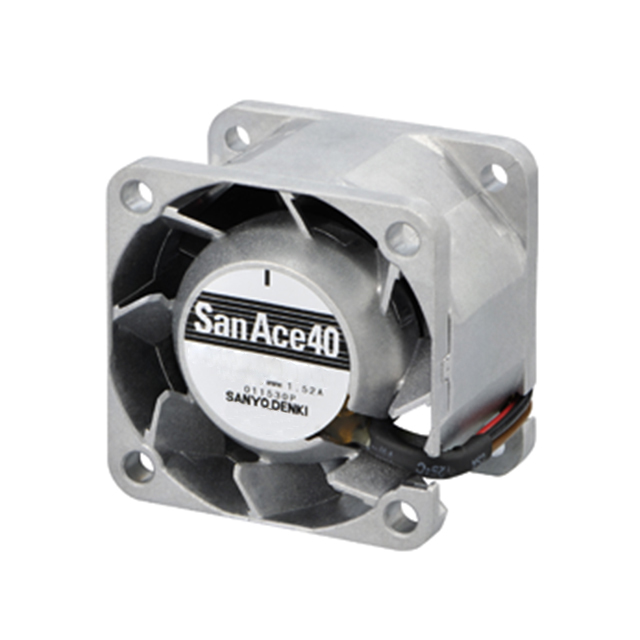

9L0412 Series

Catalog

DC FAN AXIAL BALL BEARING 12V 10.2V TO 13.8V 5.65CFM 19DB 40 X 40 X 28MM LONG LIFE

Part	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Current Rating (Amps)	Lifetime @ Temp.	Material - Blade	Approval Agency	Static Pressure	Static Pressure	Bearing Type	Weight [custom]	Weight [custom]	Voltage - Rated	Fan Type	Size / Dimension [x]	Size / Dimension [z]	Noise	Air Flow	Air Flow	Features	Operating Temperature [Min]	Operating Temperature [Max]	RPM	Termination	Power (Watts)	Width [x]
Sanyo Denki America Inc. 9L0412M301	10.2 VDC	13.8 VDC	Aluminum	45 mA	100000 Hrs	Plastic	CSA TUV UL	23.9 Pa	0.096 in H2O	Ball	0.122 lb	55.34 g	12 VDC	Tubeaxial	40 mm	40 mm	19 dB(A)	0.16 m³/min	5.7 CFM	Speed Sensor (Tach)	-20 ░C	70 °C	4000 RPM	3 Wire Leads	0.54 W	28 mm
Sanyo Denki America Inc. 9L0412H302	10.2 VDC	13.8 VDC	Aluminum	150 mA	100000 Hrs	Plastic	CSA TUV UL	106.1 Pa	0.426 in H2O	Ball	0.122 lb	55.34 g	12 VDC	Tubeaxial	40 mm	40 mm	40 dB(A)	0.367 mł/min	13.1 CFM		-20 ░C	70 °C	8400 RPM	2 Wire Leads	1.8 W	28 mm
Sanyo Denki America Inc. 9L0412J301	10.2 VDC	13.8 VDC	Aluminum	0.31 A	100000 Hrs	Plastic	CSA TUV UL	206 Pa	0.827 in H2O	Ball	0.122 lb	55.34 g	12 VDC	Tubeaxial	40 mm	40 mm	48 dB	0.515 mł/min	18.4 CFM	Speed Sensor (Tach)	-20 ░C	70 °C	11700 RPM	3 Wire Leads	3.72 W	28 mm
Sanyo Denki America Inc. 9L0412M302	10.2 VDC	13.8 VDC	Aluminum	45 mA	100000 Hrs	Plastic	CSA TUV UL	23.9 Pa	0.096 in H2O	Ball	0.122 lb	55.34 g	12 VDC	Tubeaxial	40 mm	40 mm	19 dB(A)	0.16 m³/min	5.7 CFM		-20 ░C	70 °C	4000 RPM	2 Wire Leads	0.54 W	28 mm
Sanyo Denki America Inc. 9L0412J302	10.2 VDC	13.8 VDC	Aluminum	0.31 A	100000 Hrs	Plastic	CSA TUV UL	206 Pa	0.827 in H2O	Ball	0.122 lb	55.34 g	12 VDC	Tubeaxial	40 mm	40 mm	48 dB	0.515 mł/min	18.4 CFM		-20 ░C	70 °C	11700 RPM	2 Wire Leads	3.72 W	28 mm
Sanyo Denki America Inc. 9L0412M3D01	10.2 VDC	13.8 VDC	Aluminum	45 mA	100000 Hrs	Plastic	CSA TUV UL	23.9 Pa	0.096 in H2O	Ball	0.122 lb	55.34 g	12 VDC	Tubeaxial	40 mm	40 mm	19 dB(A)	0.16 m³/min	5.7 CFM	Locked Rotor Sensor	-20 ░C	70 °C	4000 RPM	3 Wire Leads	0.54 W	28 mm
