T 3328 Series

Catalog

CONN PLUG FMALE 4P GOLD SLDR CUP

Part	Contact Finish - Mating	Fastening Type	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Ingress Protection	Primary Material	Current Rating (Amps)	Number of Positions	Features	Voltage Rating	Connector Type	Shell Material	Mounting Type	Contact Shape	Contact Size	Type	Material Flammability Rating	Housing Color	Contact Type	Insert Material	Note	Shielding
Amphenol Tuchel Industrial T 3328 518	Gold	Bayonet Lock	Keyed	-40 C	100 °C	M16-4	IP40	Plastic	10 A	4	Strain Relief	250 V	Plug Female Sockets	Plastic	Free Hanging (In-Line)
Amphenol Tuchel Industrial T 3328 991	Silver	Bayonet Lock	Keyed	-40 C	100 °C	M16-4	IP40	Plastic	10 A	4	Strain Relief	250 V	Plug Female Sockets	Plastic	Free Hanging (In-Line)

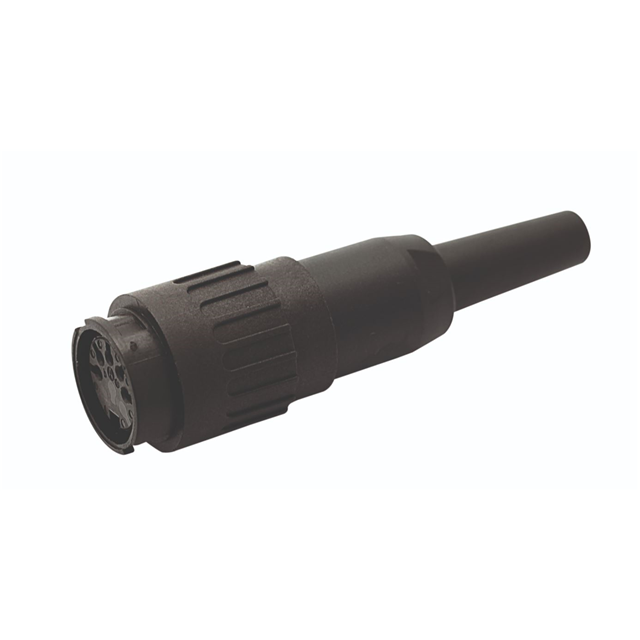

Amphenol Tuchel Industrial T 3328 551		Bayonet Lock	Keyed	-40 C	100 °C	M16-4	IP40			4	Cable Clamp Coupling Nut Strain Relief		Plug Housing	Plastic	Free Hanging (In-Line)	Circular	1.5 mm	For Female Sockets	UL94 V-0	Black	Crimp	Thermoplastic	Contacts Not Included	Unshielded
Amphenol Tuchel Industrial T 3328 502	Silver	Bayonet Lock	Keyed	-40 C	100 °C	M16-4	IP40	Plastic	10 A	4	Cable Clamp Strain Relief	250 V	Plug Female Sockets	Plastic	Free Hanging (In-Line)
Amphenol Tuchel Industrial T 3328 552		Bayonet Lock	Keyed	-40 C	100 °C	M16-4	IP40			4	Backshell Cable Clamp Coupling Nut		Plug Housing	Plastic	Free Hanging (In-Line)	Circular	1.5 mm	For Female Sockets	UL94 V-0	Black	Crimp	Thermoplastic	Contacts Not Included	Unshielded
