2213616 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

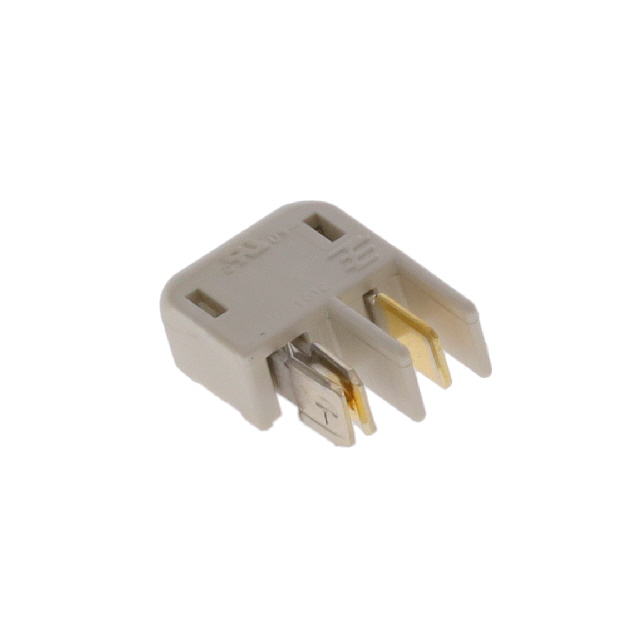

HERM BLADE & RECPT,2 POS,POST,SE
| Part | Mounting Type | Current Rating (Amps) | Housing Color | Number of Positions | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Pitch [x] | Pitch [x] | Voltage Rating | Contact Material | Contact Finish | Features | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Board Edge Right Angle Surface Mount | 6 A | Natural | 2 | Solder | -40 °C | 105 ░C | Blade and Receptacle Hermaphroditic | 4 mm | 0.157 in | 125 VDC | Copper Alloy | Gold | Board Guide | Liquid Crystal Polymer (LCP) |
TE Connectivity Raychem Cable Protection | Board Edge Right Angle Surface Mount | 6 A | Natural | 4 | Solder | -40 °C | 105 ░C | Blade and Receptacle Hermaphroditic | 4 mm | 0.157 in | 125 VDC | Copper Alloy | Gold | Board Guide | Liquid Crystal Polymer (LCP) |
