24_QMA-50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

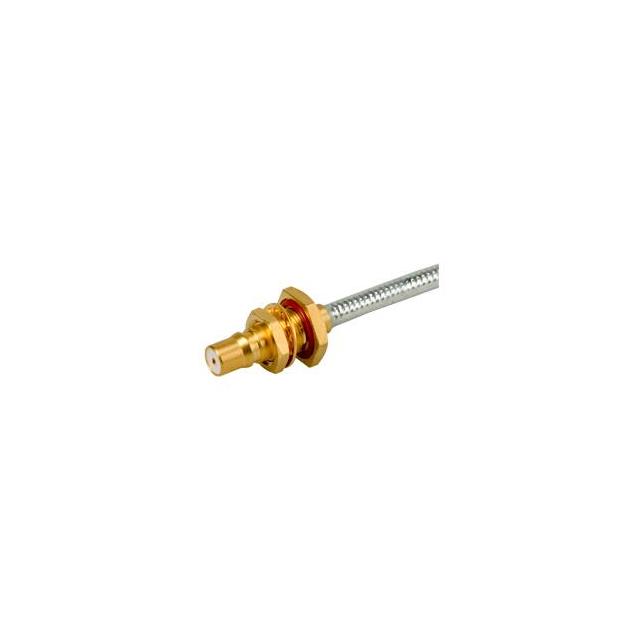

24_QMA-50-3-3/111_NE
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Body Finish | Center Contact Plating | Voltage Rating | Body Material | Contact Termination | Shield Termination | Mounting Type | Connector Type | Fastening Type | Housing Color | Impedance | Frequency - Max [Max] | Mounting Feature | Number of Ports | Cable Group | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | 85 °C | -40 C | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | Gold | 480 V | Brass | Crimp | Solder | Panel Mount | Female Socket Jack | Snap-On | Gold | 50 Ohms | 18 GHz | Bulkhead - Front Side Nut | 1 | RG-141 | Beryllium Copper |
 Huber+Suhner, Inc. | 85 °C | -40 C | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | Gold | 480 V | Brass | Crimp | Solder | Panel Mount | Female Socket Jack | Snap-On | Gold | 50 Ohms | 18 GHz | Bulkhead - Front Side Nut | 1 | RG-141 | Beryllium Copper |
