S16B-PUD Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

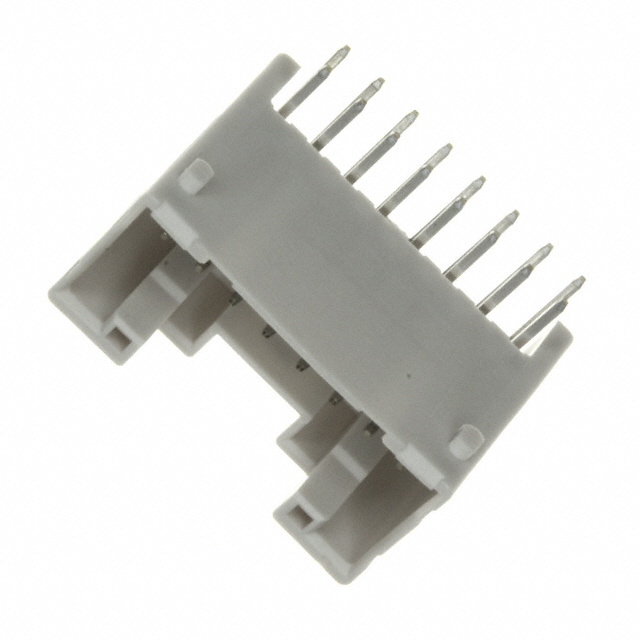

CONN HEADER R/A 16POS 2MM
| Part | Contact Finish - Post | Contact Shape | Number of Positions Loaded | Contact Type | Current Rating (Amps) | Connector Type | Insulation Color | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Termination | Number of Rows [custom] | Features | Mounting Type | Insulation Material | Fastening Type | Contact Material | Row Spacing - Mating | Row Spacing - Mating | Contact Length - Post | Contact Length - Post | Shrouding | Style | Number of Positions | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Tin | Square | All | Male Pin | 3 A | Header | Natural | 85 °C | -25 °C | UL94 V-0 | 0.079 " | 2 mm | 0.335 " | 8.51 mm | Solder | 2 | Board Guide | Right Angle Through Hole | Glass Filled Nylon 6/6 Polyamide (PA66) | Latch Holder | Copper Alloy | 2 mm | 0.079 in | 0.118 in | 3 mm | Shrouded - 4 Wall | Board to Cable/Wire | 16 | 250 V |
