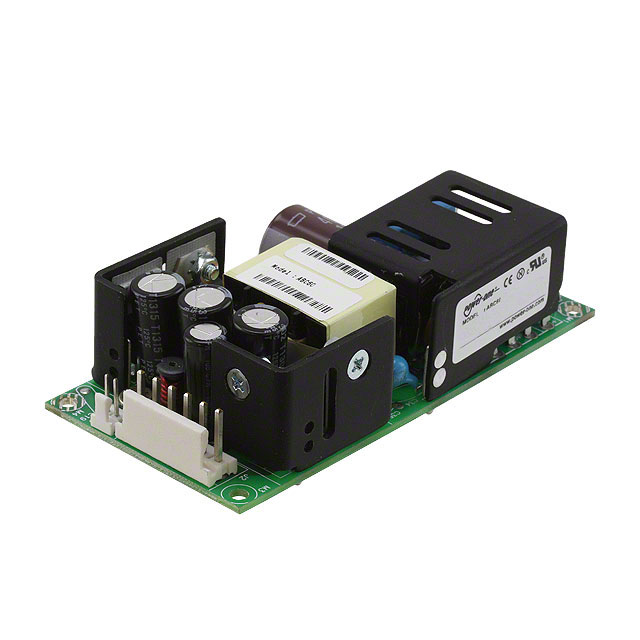

ABC60 Series

Catalog

AC/DC POWER SUPPLY SINGLE-OUT 24V 2.71A 65W

Part	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Current - Output 1	Features	Power (Watts)	Approval Agency	Number of Outputs	Efficiency	Type	Voltage - Output 1	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Voltage - Output 2	Current - Output 2	Voltage - Output 3	Current - Output 3
Bel Fuse Inc. ABC60-1024G	4.242 kV	70 °C	-20 °C	1.2 "	50.8 mm	101.6 mm	2 in	4 "	30.5 mm	2.7 A	Adjustable Output Remote Sense Universal Input	60 W	CE	1	85 %	Open Frame	24 V	Chassis Mount	264 VAC	90 VAC	ITE (Commercial)

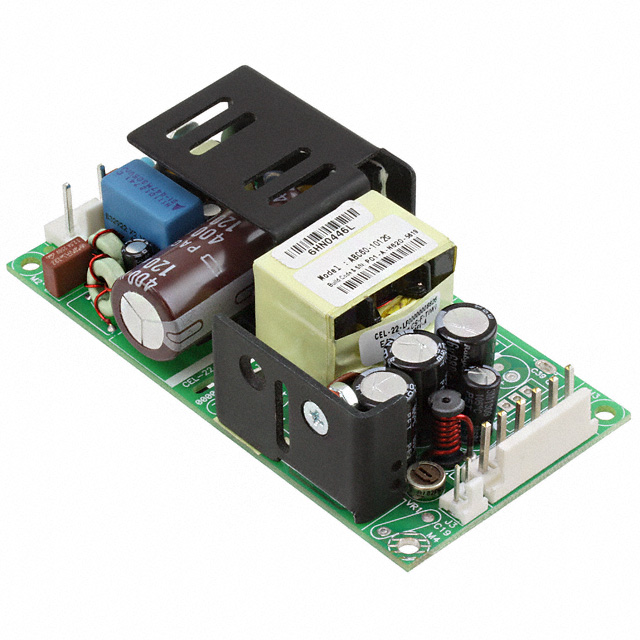

Bel Fuse Inc. ABC60-1012G	4.242 kV	70 °C	-20 °C	1.2 "	50.8 mm	101.6 mm	2 in	4 "	30.5 mm	5.4 A	Adjustable Output Remote Sense Universal Input	60 W	CE	1	85 %	Open Frame	12 V	Chassis Mount	264 VAC	90 VAC	ITE (Commercial)
Bel Fuse Inc. ABC60-3002G	4.242 kV	70 °C	-20 °C	1.2 "	50.8 mm	101.6 mm	2 in	4 "	30.5 mm	8 A	Adjustable Output Remote Sense Universal Input	60 W	CE	3	85 %	Open Frame	5.2 V	Chassis Mount	264 VAC	90 VAC	ITE (Commercial)	14.6 V	2.5 A	-16.2 V	500 mA
Bel Fuse Inc. ABC60-1048G	4.242 kV	70 °C	-20 °C	1.2 "	50.8 mm	101.6 mm	2 in	4 "	30.5 mm	1.35 A	Adjustable Output Remote Sense Universal Input	60 W	CE	1	85 %	Open Frame	48 V	Chassis Mount	264 VAC	90 VAC	ITE (Commercial)
Bel Fuse Inc. ABC60-3003G	4.242 kV	70 °C	-20 °C	1.2 "	50.8 mm	101.6 mm	2 in	4 "	30.5 mm	8 A	Adjustable Output Remote Sense Universal Input	60 W	CE	3	85 %	Open Frame	3.3 V	Chassis Mount	264 VAC	90 VAC	ITE (Commercial)	5.2 V	3 A	-12.8 V	500 mA
Bel Fuse Inc. ABC60-1005G	4.242 kV	70 °C	-20 °C	1.2 "	50.8 mm	101.6 mm	2 in	4 "	30.5 mm	10 A	Adjustable Output Remote Sense Universal Input	60 W	CE	1	85 %	Open Frame	5.2 V	Chassis Mount	264 VAC	90 VAC	ITE (Commercial)
