R50BG2 Series

Catalog

LED, THROUGH HOLE, 7.6MM X 7.6MM BI-COLOR, BLUE/GREEN, (460NM/515NM), (250MCD/1000MCD), WATER CLEAR LENS, 160 DEG VIEWING ANGLE

Part	Lens Size	Package / Case	Current - Test [custom]	Current - Test [custom]	Viewing Angle	Lens Transparency	Millicandela Rating	Wavelength - Dominant	Configuration	Mounting Type	Height (Max) [Max] [z]	Color	Lens Style	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Lens Color	Lens Size [diameter]

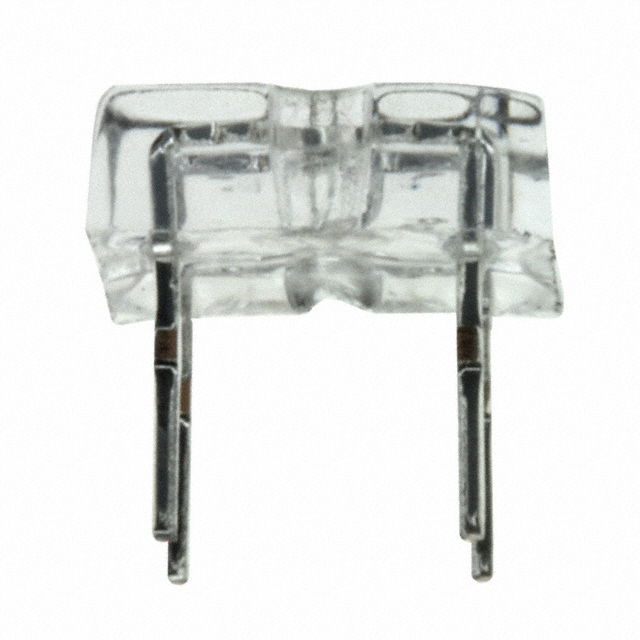

Bivar Inc. R50BG2-F-0160	7.6 mm	4-DIP (0.200" 5.08mm)	50 mA	50 mA	160 °	Clear	150 mcd 800 mcd	465 nm 520 nm	Common Cathode	Through Hole	4.4 mm	Blue Green	Square with Flat Top	3.8 V 3.8 V	7.6 mm	7.6 mm	Colorless

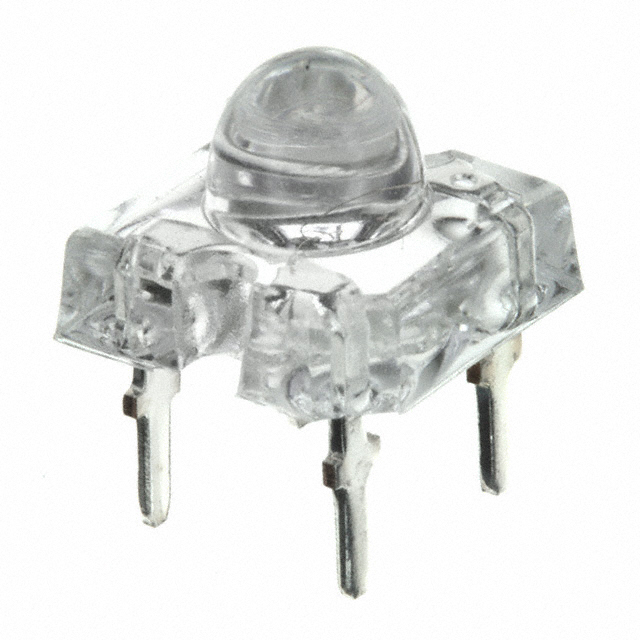

Bivar Inc. R50BG2-4-0045		4-DIP (0.200" 5.08mm)	50 mA	50 mA	45 °	Clear	400 mcd 5000 mcd	465 nm 520 nm	Common Cathode	Through Hole	7.8 mm	Blue Green	Round with Domed Top	3.8 V 3.8 V	7.6 mm	7.6 mm	Colorless	4.6 mm

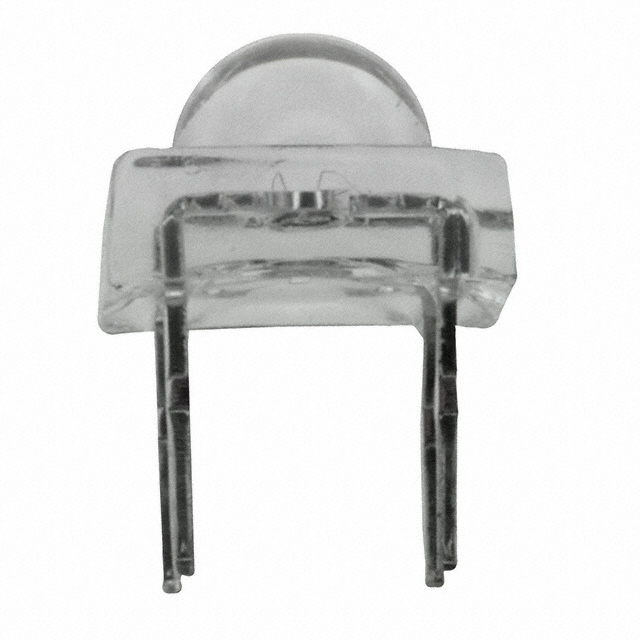

Bivar Inc. R50BG2-5-0080		4-DIP (0.200" 5.08mm)	50 mA	50 mA	80 °	Clear	150 mcd 1500 mcd	465 nm 520 nm	Common Cathode	Through Hole	6.9 mm	Blue Green	Round with Domed Top	3.8 V 3.8 V	7.6 mm	7.6 mm	Colorless	5 mm
