OSTOQ12 Series

Catalog

TERM BLOCK HDR 12POS VERT 3.81MM

Part	Insulation Height [z]	Insulation Height [z]	Contact Tail Length	Contact Tail Length	Contact Material	Housing Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Positions Per Level	Pitch	Pitch	Number of Positions	Voltage - UL	Header Orientation	Termination Style	Contact Mating Finish	Type	Material Flammability Rating	Features	Insulation Height

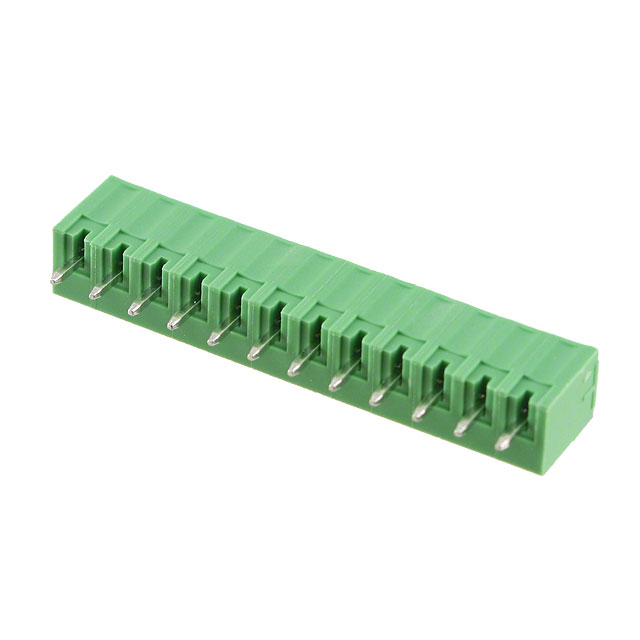

On Shore Technology Inc. OSTOQ123250	3.5 mm	0.138 "	0.138 in	3.5 mm	Brass	Thermoplastic	Solder Through Hole	-30 ░C	105 ░C	1	12	3.81 mm	0.15 in	12	300 V	Vertical	Solder	Tin	Header Male Pins Shrouded (4 Side)
On Shore Technology Inc. OSTOQ127051	4 mm	0.157 in	0.157 in	4 mm	Brass	Thermoplastic	Solder Through Hole	-30 ░C	105 ░C	1	12	5 mm	0.197 in	12	300 V	90° Right Angle	Solder	Tin	Header Male Pins Shrouded (2 Side)
On Shore Technology Inc. OSTOQ12A050	4 mm	0.157 in	0.157 in	4 mm	Brass	Thermoplastic	Solder Through Hole	-30 ░C	105 ░C	1	12	7.5 mm	0.295 in	12	300 V	Vertical	Solder	Tin	Header Male Pins Shrouded (2 Side)
On Shore Technology Inc. OSTOQ123551	3.5 mm	0.138 "	0.138 in	3.5 mm	Brass	Thermoplastic	Solder Through Hole	-30 ░C	105 ░C	1	12	3.81 mm	0.15 in	12	300 V	90° Right Angle	Solder	Tin	Header Male Pins Shrouded (4 Side)	UL94 V-0	Mating Flange
On Shore Technology Inc. OSTOQ12B151			0.15 in	3.81 mm	Brass	Thermoplastic	Through Hole	-30 ░C	105 ░C	1	12	2.5 mm	0.098 in	12	125 V	90° Right Angle	Solder	Tin	Header Male Pins Shrouded (4 Side)			0.15 in 3.81 mm

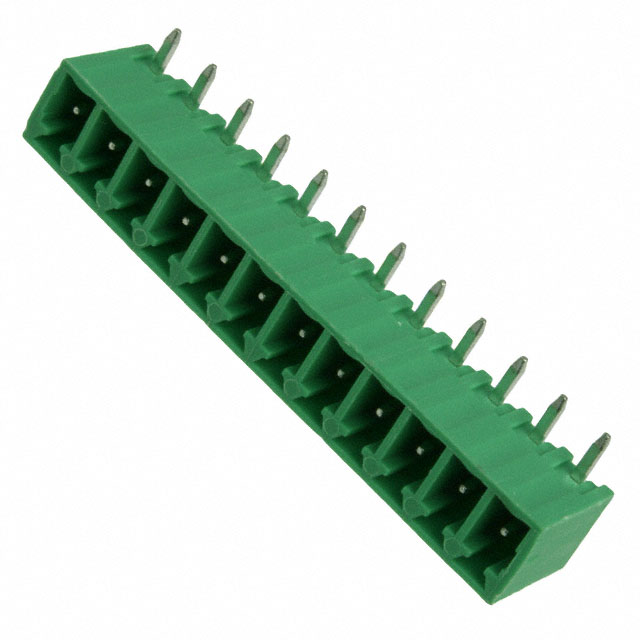

On Shore Technology Inc. OSTOQ123251	3.5 mm	0.138 "	0.138 in	3.5 mm	Brass	Thermoplastic	Solder Through Hole	-30 ░C	105 ░C	1	12	3.81 mm	0.15 in	12	300 V	90° Right Angle	Solder	Tin	Header Male Pins Shrouded (4 Side)
On Shore Technology Inc. OSTOQ127151	4 mm	0.157 in	0.157 in	4 mm	Brass	Thermoplastic	Solder Through Hole	-40 C	115 °C	1	12	5 mm	0.197 in	12	300 V	90° Right Angle	Solder	Tin	Header Male Pins Shrouded (4 Side)
On Shore Technology Inc. OSTOQ125550	4 mm	0.157 in	0.157 in	4 mm	Brass	Thermoplastic	Solder Through Hole	-30 ░C	105 ░C	1	12	5.08 mm	0.2 in	12	300 V	Vertical	Solder	Tin	Header Male Pins Shrouded (4 Side)	UL94 V-0	Mating Flange
On Shore Technology Inc. OSTOQ121250	3.5 mm	0.138 "	0.138 in	3.5 mm	Brass	Thermoplastic	Solder Through Hole	-30 ░C	105 ░C	1	12	3.5 mm	0.138 "	12	300 V	Vertical	Solder	Tin	Header Male Pins Shrouded (4 Side)
On Shore Technology Inc. OSTOQ12A051	4 mm	0.157 in	0.157 in	4 mm	Brass	Thermoplastic	Solder Through Hole	-30 ░C	105 ░C	1	12	7.5 mm	0.295 in	12	300 V	90° Right Angle	Solder	Tin	Header Male Pins Shrouded (2 Side)
