IDPC-45 Series

Catalog

LED DRVR CC AC/DC 57-95V 350MA

Part	Mounting Type	Features	Current - Output (Max) [Max]	Number of Outputs	Type	Topology	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Efficiency	Voltage - Isolation	Termination Style	Dimming	Power (Watts)	Approval Agency	Voltage - Output [Min]	Voltage - Output [Max]

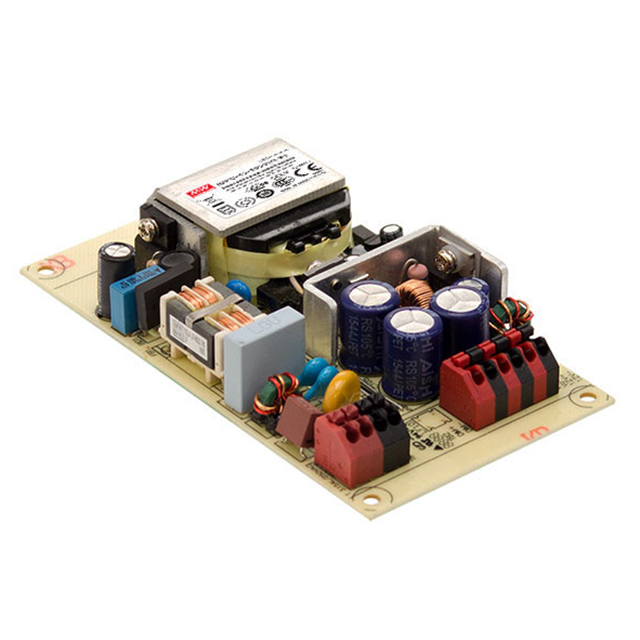

MEAN WELL USA Inc. IDPC-45-350	Chassis Mount	SCP	350 mA	1	Constant Current	AC DC Converter	90 VAC	-20 ░C	40 °C	295 VAC	0.98 in	4.72 "	120 mm	25 mm	2.62 "	66.5 mm	86 %	3750 VDC	Terminal Block	Analog PWM	33 W	CB CCC CE cURus ENEC	57 V	95 V
MEAN WELL USA Inc. IDPC-45A-1050	Chassis Mount	SCP	1.05 A	1	Constant Current	AC DC Converter	90 VAC	-20 ░C	40 °C	295 VAC	0.98 in	4.72 "	120 mm	25 mm	2.62 "	66.5 mm	84 %	3750 VDC	Terminal Block	Analog PWM	45 W	CB CCC CE cURus ENEC	26 V	43 V

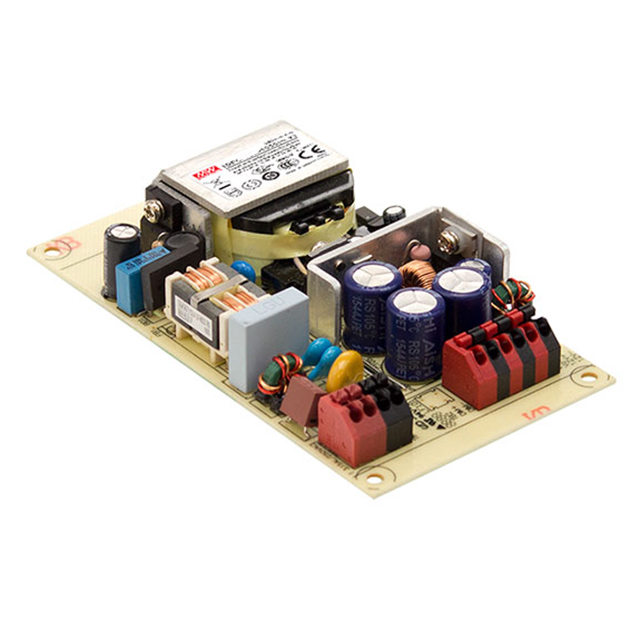

MEAN WELL USA Inc. IDPC-45A-350	Chassis Mount	SCP	350 mA	1	Constant Current	AC DC Converter	90 VAC	-20 ░C	40 °C	295 VAC	0.98 in	4.72 "	120 mm	25 mm	2.62 "	66.5 mm	86 %	3750 VDC	Terminal Block	Analog PWM	33 W	CB CCC CE cURus ENEC	57 V	95 V
MEAN WELL USA Inc. IDPC-45A-500	Chassis Mount	SCP	500 mA	1	Constant Current	AC DC Converter	90 VAC	-20 ░C	40 °C	295 VAC	0.98 in	4.72 "	120 mm	25 mm	2.62 "	66.5 mm	85 %	3750 VDC	Terminal Block	Analog PWM	45 W	CB CCC CE cURus ENEC	54 V	90 V
MEAN WELL USA Inc. IDPC-45-1050	Chassis Mount	SCP	1.05 A	1	Constant Current	AC DC Converter	90 VAC	-20 ░C	40 °C	295 VAC	0.98 in	4.72 "	120 mm	25 mm	2.62 "	66.5 mm	84 %	3750 VDC	Terminal Block	Analog PWM	45 W	CB CCC CE cURus ENEC	26 V	43 V
MEAN WELL USA Inc. IDPC-45-500	Chassis Mount	SCP	500 mA	1	Constant Current	AC DC Converter	90 VAC	-20 ░C	40 °C	295 VAC	0.98 in	4.72 "	120 mm	25 mm	2.62 "	66.5 mm	85 %	3750 VDC	Terminal Block	Analog PWM	45 W	CB CCC CE cURus ENEC	54 V	90 V
