A1RXB Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

IDC CABLE - APR34B/AE34M/X

Part	Shielding	Number of Positions [custom]	Length	Length	Features	Contact Finish Thickness	Contact Finish Thickness	Pitch - Cable	Pitch - Cable	Connector Type	Pitch - Connector	Pitch - Connector	Contact Finish	Number of Rows [custom]	Color	Cable Termination	Number of Positions
TE Connectivity AMP Connectors A1RXB-3436M	Unshielded	34	91.44 cm	3 ft	Polarizing Key Strain Relief	30 Áin	0.76 Ám	0.05 in	1.27 mm	Plug to Cable	0.1 in	2.54 mm	Gold	2	Multiple Ribbon	IDC

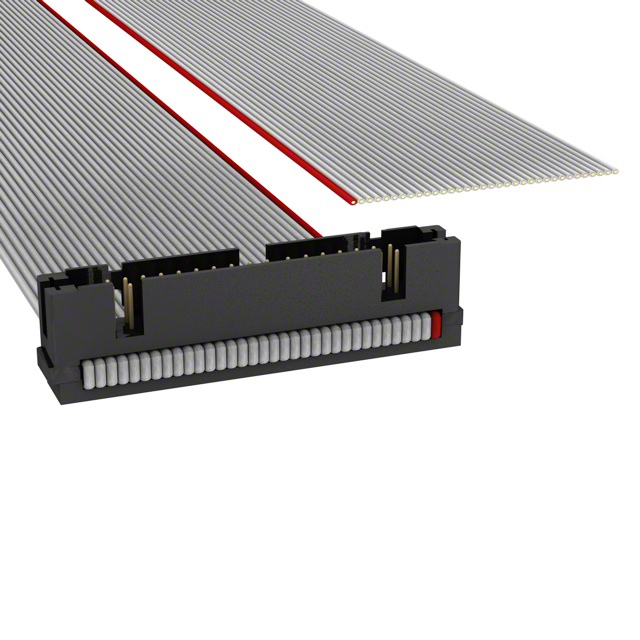

TE Connectivity AMP Connectors A1RXB-3436G	Unshielded	34	91.44 cm	3 ft	Polarizing Key Strain Relief	30 Áin	0.76 Ám	0.05 in	1.27 mm	Plug to Cable	0.1 in	2.54 mm	Gold	2		IDC
TE Connectivity AMP Connectors A1RXB-1636G	Unshielded		91.44 cm	3 ft	Polarizing Key Strain Relief	30 Áin	0.76 Ám	0.05 in	1.27 mm	Plug to Cable	0.1 in	2.54 mm	Gold	2		IDC	16

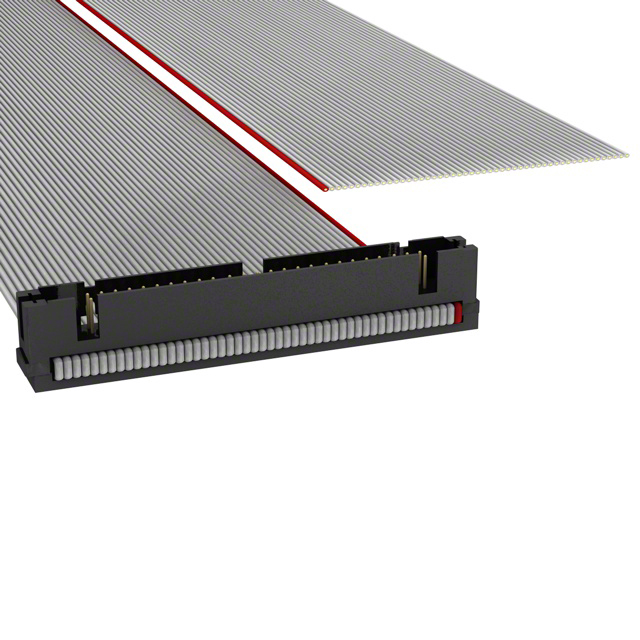

TE Connectivity AMP Connectors A1RXB-5036M	Unshielded		91.44 cm	3 ft	Polarizing Key Strain Relief	30 Áin	0.76 Ám	0.05 in	1.27 mm	Plug to Cable	0.1 in	2.54 mm	Gold	2	Multiple Ribbon	IDC	50
TE Connectivity AMP Connectors A1RXB-5036G	Unshielded		91.44 cm	3 ft	Polarizing Key Strain Relief	30 Áin	0.76 Ám	0.05 in	1.27 mm	Plug to Cable	0.1 in	2.54 mm	Gold	2		IDC	50
TE Connectivity AMP Connectors A1RXB-1636M	Unshielded		91.44 cm	3 ft	Polarizing Key Strain Relief	30 Áin	0.76 Ám	0.05 in	1.27 mm	Plug to Cable	0.1 in	2.54 mm	Gold	2	Multiple Ribbon	IDC	16
TE Connectivity AMP Connectors A1RXB-2036M	Unshielded		91.44 cm	3 ft	Polarizing Key Strain Relief	30 Áin	0.76 Ám	0.05 in	1.27 mm	Plug to Cable	0.1 in	2.54 mm	Gold	2	Multiple Ribbon	IDC	20
TE Connectivity AMP Connectors A1RXB-2036G	Unshielded		91.44 cm	3 ft	Polarizing Key Strain Relief	30 Áin	0.76 Ám	0.05 in	1.27 mm	Plug to Cable	0.1 in	2.54 mm	Gold	2		IDC	20

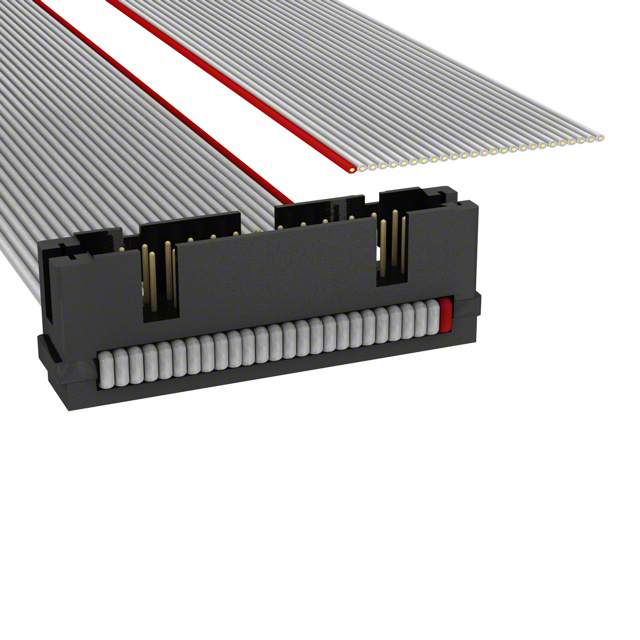

TE Connectivity AMP Connectors A1RXB-2636G	Unshielded		91.44 cm	3 ft	Polarizing Key Strain Relief	30 Áin	0.76 Ám	0.05 in	1.27 mm	Plug to Cable	0.1 in	2.54 mm	Gold	2		IDC	26

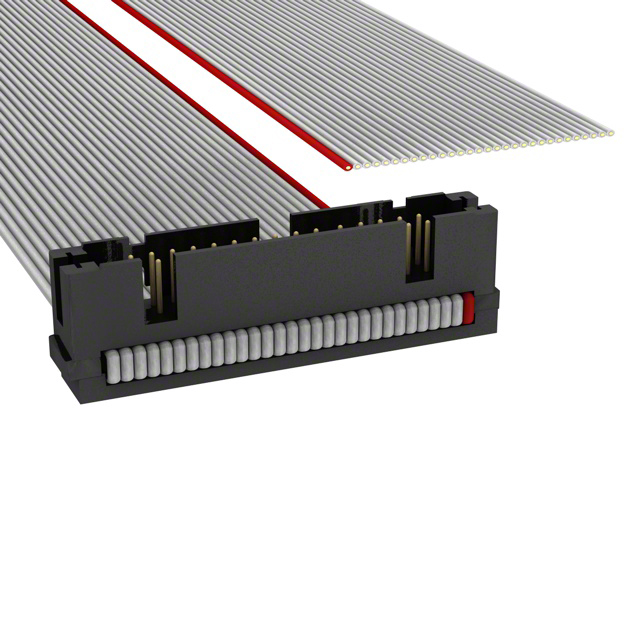

TE Connectivity AMP Connectors A1RXB-3036G	Unshielded		91.44 cm	3 ft	Polarizing Key Strain Relief	30 Áin	0.76 Ám	0.05 in	1.27 mm	Plug to Cable	0.1 in	2.54 mm	Gold	2		IDC	30
