842-019 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 19POS 0.100

Part	Termination Rows	Material - Insulation	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Number of Positions	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Type	Number of Rows	Read Out	Contact Finish Thickness	Contact Finish Thickness	Card Type	Gender	Color	Contact Finish	Pitch	Pitch	Termination	Mounting Type	Number of Positions/Bay/Row

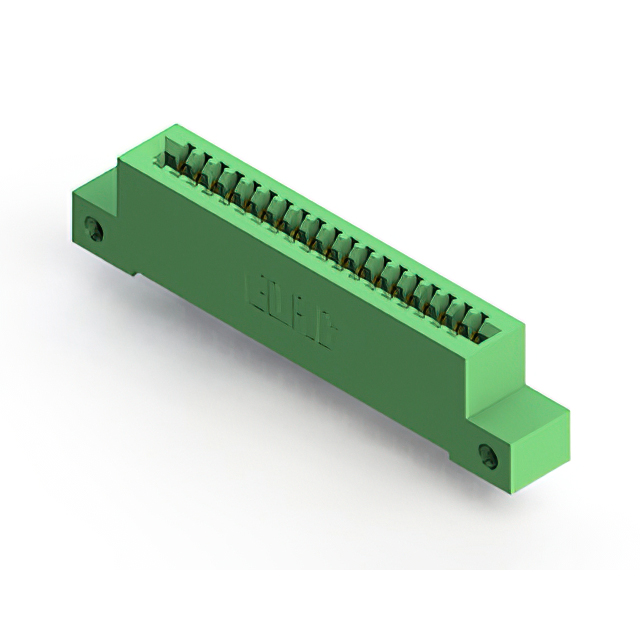

EDAC Inc. 842-019-500-112	1	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Copper Alloy	19	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Cantilever	1	Single	0.25 Ám	10 Áin	Non Specified - Single Edge	Female	Green	Gold	0.1 "	2.54 mm	Solder Eyelet(s)	Through Hole	19

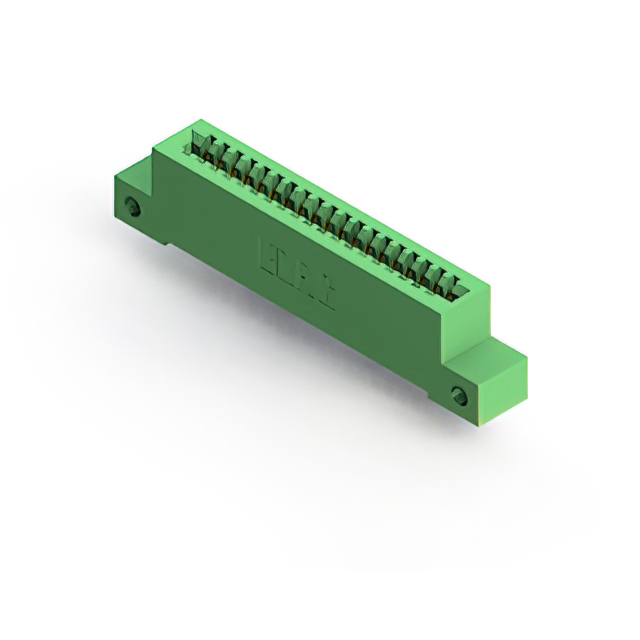

EDAC Inc. 842-019-544-112	1	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Copper Alloy	19	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Cantilever	1	Single	0.25 Ám	10 Áin	Non Specified - Single Edge	Female	Green	Gold	0.1 "	2.54 mm	Wire Wrap	Through Hole	19

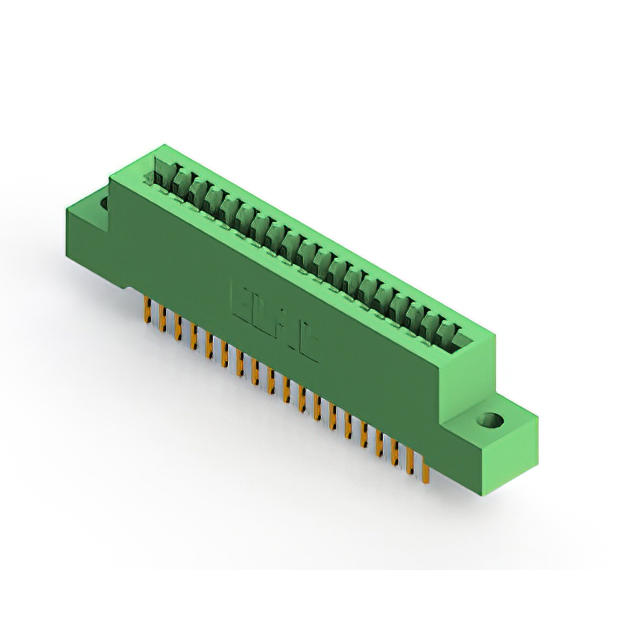

EDAC Inc. 842-019-558-102	1	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Copper Alloy	19	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Cantilever	1	Single	0.25 Ám	10 Áin	Non Specified - Single Edge	Female	Green	Gold	0.1 "	2.54 mm	Solder	Right Angle Through Hole	19

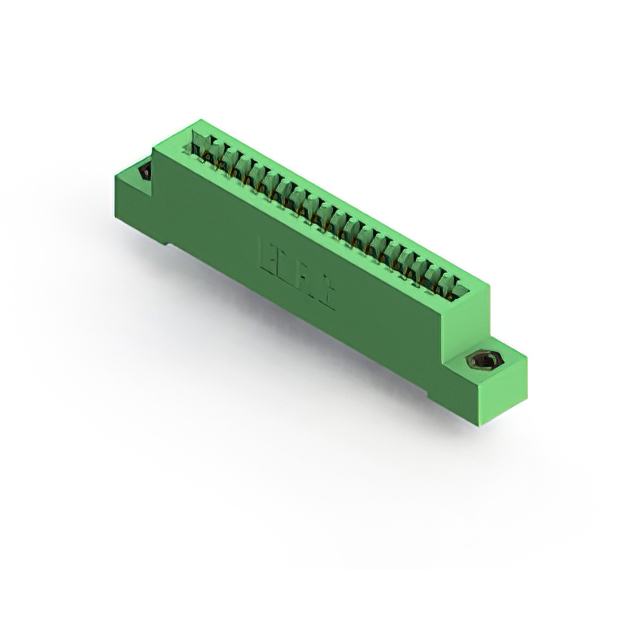

EDAC Inc. 842-019-544-107	1	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Copper Alloy	19	Flush Mount M3 Threaded Insert Top Opening			Cantilever	1	Single	0.25 Ám	10 Áin	Non Specified - Single Edge	Female	Green	Gold	0.1 "	2.54 mm	Wire Wrap	Through Hole	19
EDAC Inc. 842-019-558-107	1	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Copper Alloy	19	Flush Mount M3 Threaded Insert Top Opening			Cantilever	1	Single	0.25 Ám	10 Áin	Non Specified - Single Edge	Female	Green	Gold	0.1 "	2.54 mm	Solder	Right Angle Through Hole	19
EDAC Inc. 842-019-500-104	1	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Copper Alloy	19	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Cantilever	1	Single	0.25 Ám	10 Áin	Non Specified - Single Edge	Female	Green	Gold	0.1 "	2.54 mm	Solder Eyelet(s)	Through Hole	19
EDAC Inc. 842-019-524-103	1	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Copper Alloy	19	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Cantilever	1	Single	0.25 Ám	10 Áin	Non Specified - Single Edge	Female	Green	Gold	0.1 "	2.54 mm	Solder	Through Hole	19

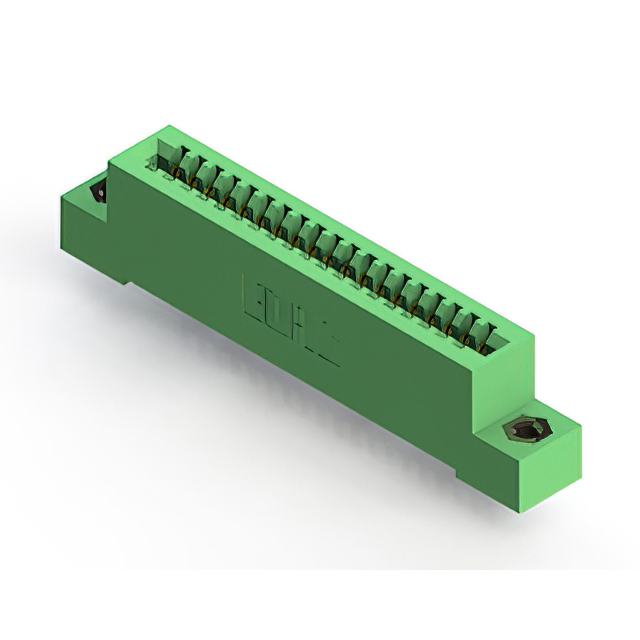

EDAC Inc. 842-019-521-108	1	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Copper Alloy	19	4-40 Flush Mount Threaded Insert Top Opening			Cantilever	1	Single	0.25 Ám	10 Áin	Non Specified - Single Edge	Female	Green	Gold	0.1 "	2.54 mm	Solder	Through Hole	19
EDAC Inc. 842-019-558-101	1	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Copper Alloy	19				Cantilever	1	Single	0.25 Ám	10 Áin	Non Specified - Single Edge	Female	Green	Gold	0.1 "	2.54 mm	Solder	Right Angle Through Hole	19

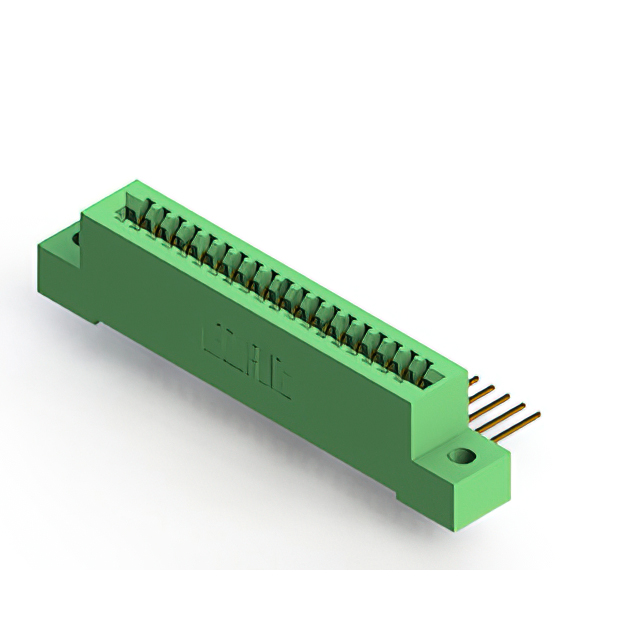

EDAC Inc. 842-019-559-102	1	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Copper Alloy	19	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Cantilever	1	Single	0.25 Ám	10 Áin	Non Specified - Single Edge	Female	Green	Gold	0.1 "	2.54 mm	Solder	Right Angle Through Hole	19
