TR9KI1500 Series

Catalog

AC/DC DESKTOP ADAPTER 24V 36W

Part	Input Type	Form	Current - Output (Max) [Max]	Output Connector	Efficiency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Standard Number	Voltage - Output	Region Utilized	Approval Agency	Input Connector	No Load Power Consumption	Voltage - Input [Max]	Voltage - Input [Min]	Cord Length	Cord Length	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Applications	Polarization	Output Connector [diameter]	Output Connector [x]
GlobTek, Inc. TR9KI1500T00-IMR6B	Cord (Sold Separately)	Desktop (Class II)	1.5 A	Barrel Plug Kit (1.3mm x 3.5mm	Level VI	1.97 in	50 mm	105 mm	35.5 mm	1.4 "	4.13 in	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	24 V	International	CB CCC CE EAC ETL LPS PSE RCM S-Mark UkrSEPRO VCCI	IEC 320-C8	75 mW	264 VAC	90 VAC	1.5 m	59 in	-20 ░C	40 °C	36 W	Household Appliances ITE (Commercial) Medical

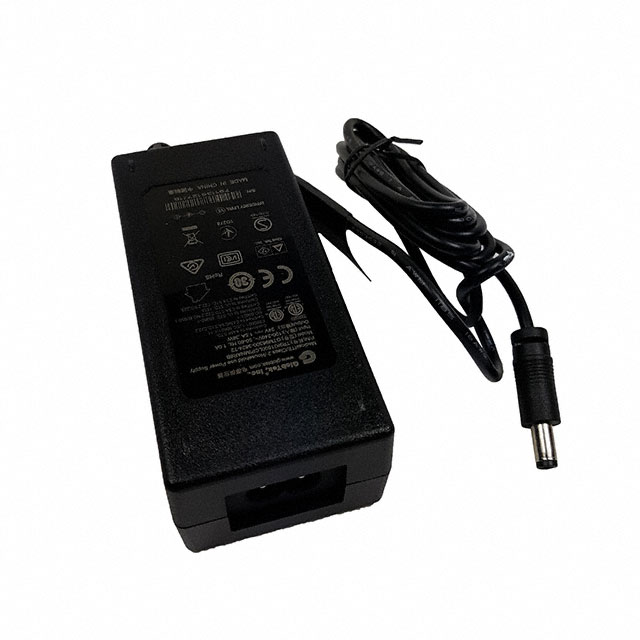

GlobTek, Inc. TR9KI1500LCPIMNAR6B	Cord (Sold Separately)	Desktop (Class II)	1.5 A	Barrel Plug	Level VI	1.97 in	50 mm	105 mm	35.5 mm	1.4 "	4.13 in	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	24 V	International	CB CCC CE EAC ETL LPS PSE RCM S-Mark UkrSEPRO VCCI	IEC 320-C8	75 mW	264 VAC	90 VAC	1.53 m	60.2 in	-20 ░C	40 °C	36 W	Household Appliances ITE (Commercial) Medical	Positive Center	2.5 mm 5.5 mm	11 mm

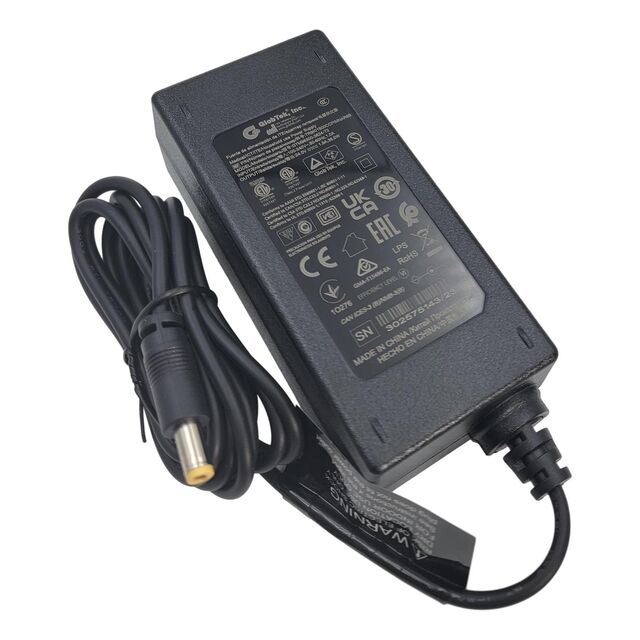

GlobTek, Inc. TR9KI1500CCPIMNAR6B	Cord (Sold Separately)	Desktop (Class II)	1.5 A	Barrel Plug	Level VI	1.97 in	50 mm	105 mm	35.5 mm	1.4 "	4.13 in	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	24 V	International	CB CCC CE EAC ETL LPS PSE RCM S-Mark UkrSEPRO VCCI	IEC 320-C8	75 mW	264 VAC	90 VAC	1.5 m	59 in	-20 ░C	40 °C	36 W	Household Appliances ITE (Commercial) Medical	Positive Center	2.1 mm 5.5 mm	11 mm
