RF2-1A Series
Manufacturer: Switch Components
Beta
⌘K
SWITCH ROCKER SPST 16A 12V
| Part | Mechanical Life | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - DC | Circuit | Current Rating (Amps) | Approval Agency | Switch Function | Actuator Marking | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Illumination Voltage (Nominal) | Color - Actuator/Cap | Mounting Type | Actuator Type | Termination Style | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

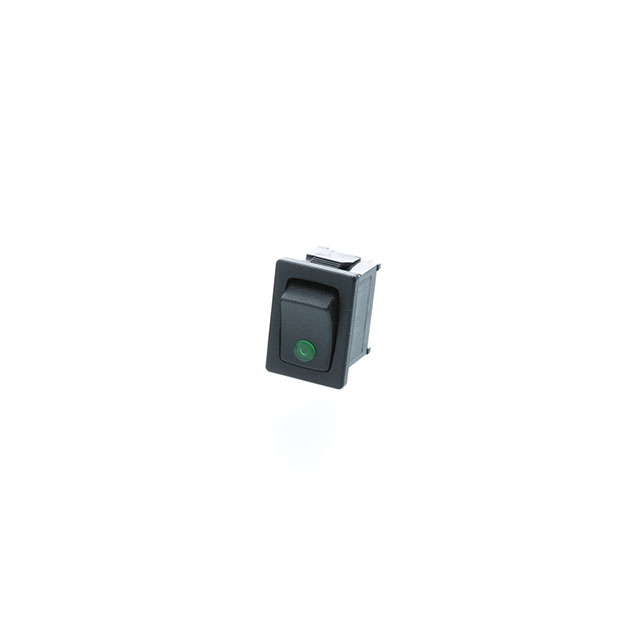

 Switch Components | 10000 Steps | 6000 Cycles | 85 °C | -25 °C | 12 V | SPST | 16 A | CSA cURus ENEC | On-Off | No Marking | 19.2 mm | 13 mm | 12 VDC | Black | Panel Mount Snap-In | Concave (Curved) - Illuminated | Quick Connect | Green LED |
 Switch Components | 10000 Steps | 6000 Cycles | 85 °C | -25 °C | 12 V | SPST | 16 A | CSA cURus ENEC | On-Off | No Marking | 19.2 mm | 13 mm | 12 VDC | Black | Panel Mount Snap-In | Concave (Curved) - Illuminated | Quick Connect | LED Red |
