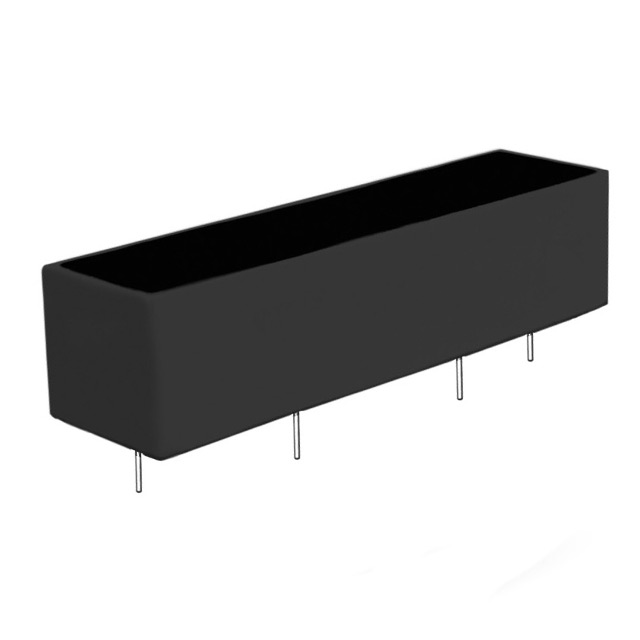

3351-4275 Series
Manufacturer: Computer Components Inc
Beta
⌘K
RELAY REED HV SPST-NC 50W 3A 5V
| Part | Coil Resistance | Contact Rating (Current) | Must Release Voltage | Operate Time | Form B Count | Contact Form | Must Operate Voltage | Coil Type | Termination Style | Coil Current | Release Time | Mounting Type | Coil Voltage | Operating Temperature (Max) | Operating Temperature (Min) | Switching Voltage AC (Max) | Switching Voltage DC (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Computer Components Inc | 40 Ohms | 3 A | 0.5 VDC | 3 ms | 1 | SPST-NC | 3.75 VDC | Non Latching | PC Pin | 125 mA | 3 ms | Through Hole | 5 V | 85 °C | -20 °C | 7500 VAC | 7500 VDC |
